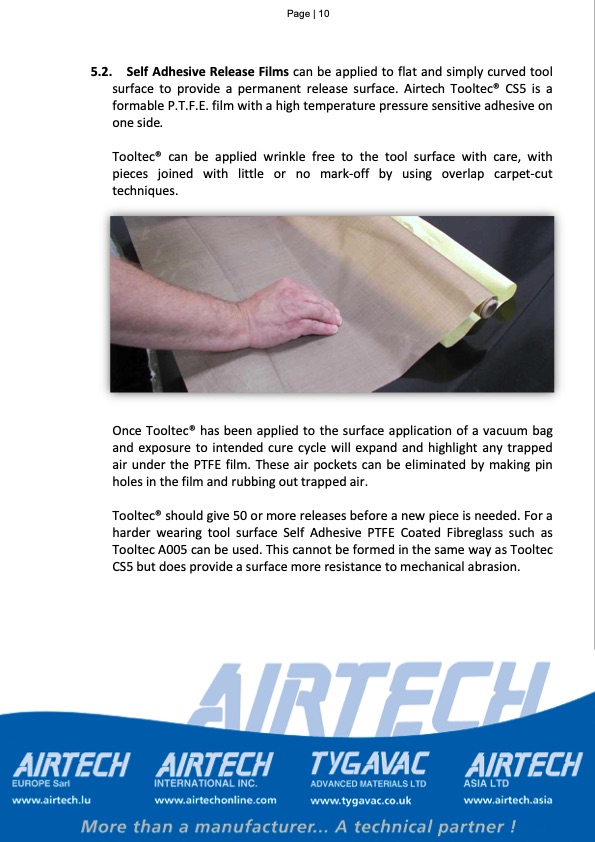

Page | 10 Vacuum Bagging for Resin Infusion 5.2. Self Adhesive Release Films can be applied to flat and simply curved tool surface to provide a permanent release surface. Airtech Tooltec® CS5 is a formable P.T.F.E. film with a high temperature pressure sensitive adhesive on one side. Tooltec® can be applied wrinkle free to the tool surface with care, with pieces joined with little or no mark-off by using overlap carpet-cut techniques. Once Tooltec® has been applied to the surface application of a vacuum bag and exposure to intended cure cycle will expand and highlight any trapped air under the PTFE film. These air pockets can be eliminated by making pin holes in the film and rubbing out trapped air. Tooltec® should give 50 or more releases before a new piece is needed. For a harder wearing tool surface Self Adhesive PTFE Coated Fibreglass such as Tooltec A005 can be used. This cannot be formed in the same way as Tooltec CS5 but does provide a surface more resistance to mechanical abrasion.PDF Image | Vacuum Bagging for Resin Infusion
