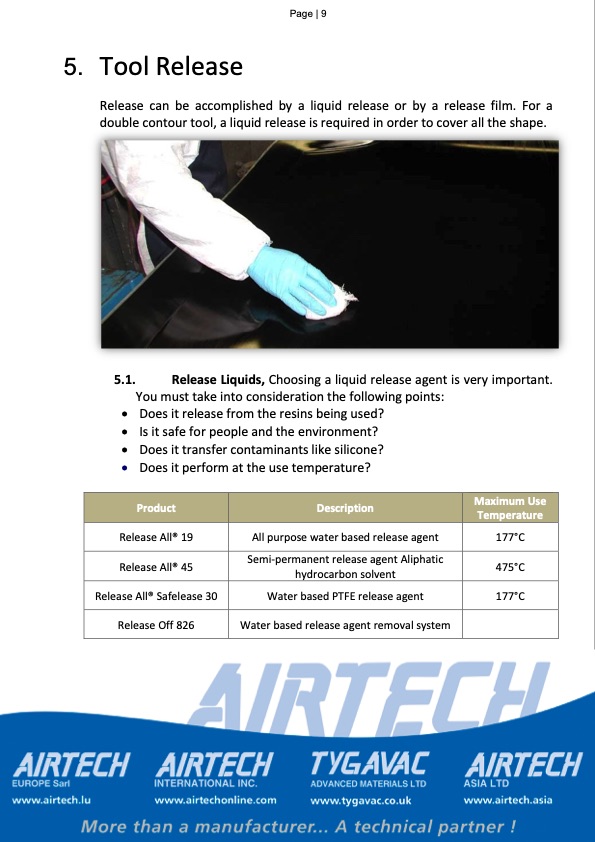

5. Tool Release Page | 9 Vacuum Bagging for Resin Infusion Release can be accomplished by a liquid release or by a release film. For a double contour tool, a liquid release is required in order to cover all the shape. 5.1. Release Liquids, Choosing a liquid release agent is very important. • • • • You must take into consideration the following points: Does it release from the resins being used? Is it safe for people and the environment? Does it transfer contaminants like silicone? Does it perform at the use temperature? Product Description Maximum Use Temperature Release All® 19 Release All® 45 Release All® Safelease 30 Release Off 826 All purpose water based release agent Semi-permanent release agent Aliphatic hydrocarbon solvent Water based PTFE release agent Water based release agent removal system 177°C 475°C 177°CPDF Image | Vacuum Bagging for Resin Infusion
