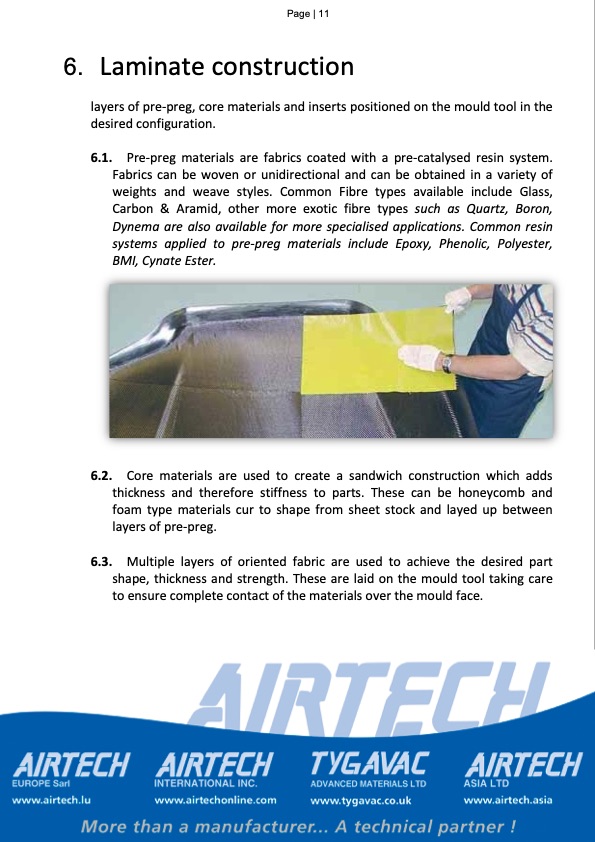

6. Page | 11 Vacuum Bagging for Resin Infusion Laminate construction layers of pre-preg, core materials and inserts positioned on the mould tool in the desired configuration. 6.1. Pre-preg materials are fabrics coated with a pre-catalysed resin system. Fabrics can be woven or unidirectional and can be obtained in a variety of weights and weave styles. Common Fibre types available include Glass, Carbon & Aramid, other more exotic fibre types such as Quartz, Boron, Dynema are also available for more specialised applications. Common resin systems applied to pre-preg materials include Epoxy, Phenolic, Polyester, BMI, Cynate Ester. 6.2. Core materials are used to create a sandwich construction which adds thickness and therefore stiffness to parts. These can be honeycomb and foam type materials cur to shape from sheet stock and layed up between layers of pre-preg. 6.3. Multiple layers of oriented fabric are used to achieve the desired part shape, thickness and strength. These are laid on the mould tool taking care to ensure complete contact of the materials over the mould face.PDF Image | Vacuum Bagging for Resin Infusion
