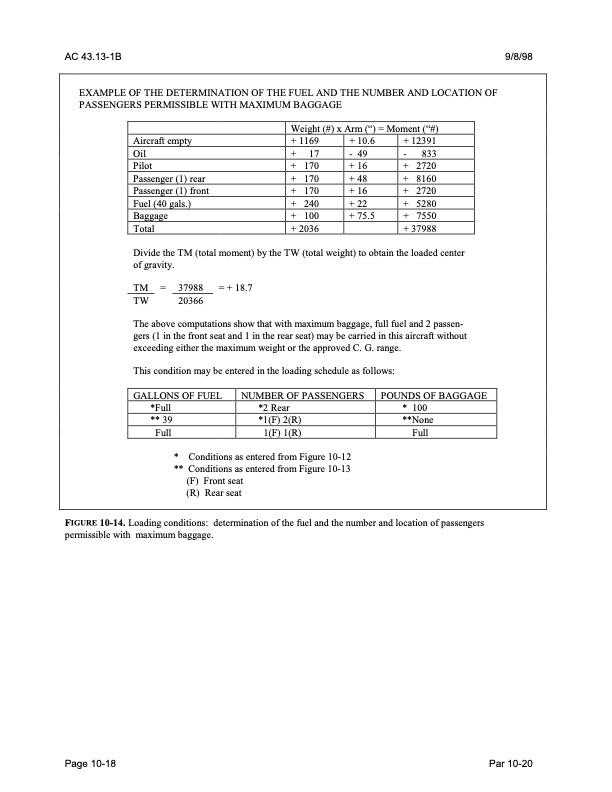

AC 43.13-1B 9/8/98 EXAMPLE OF THE DETERMINATION OF THE FUEL AND THE NUMBER AND LOCATION OF PASSENGERS PERMISSIBLE WITH MAXIMUM BAGGAGE Weight (#) x Arm (“) = Moment (“#) Aircraft empty Oil Pilot Passenger (1) rear Passenger (1) front Fuel (40 gals.) Baggage Total + 1169 + 10.6 +17 -49 + 170 +16 + 170 +48 + 170 +16 + 240 +22 + 100 + 75.5 + 2036 + 12391 - 833 + 2720 + 8160 + 2720 + 5280 + 7550 + 37988 Divide the TM (total moment) by the TW (total weight) to obtain the of gravity. TM = 37988 = + 18.7 TW 20366 loaded center The above computations show that with maximum baggage, full fuel and 2 passen gers (1 in the front seat and 1 in the rear seat) may be carried in this aircraft without exceeding either the maximum weight or the approved C. G. range. This condition may be entered in the loading schedule as follows: GALLONS OF FUEL *Full ** 39 Full NUMBER OF PASSENGERS *2 Rear *1(F) 2(R) 1(F) 1(R) POUNDS OF BAGGAGE * 100 **None Full * ** Conditions as entered from Figure 10-13 (F) Front seat (R) Rear seat Conditions as entered from Figure 10-12 FIGURE 10-14. Loading conditions: determination of the fuel and the number and location of passengers permissible with maximum baggage. Page 10-18 Par 10-20PDF Image | AFS-640
