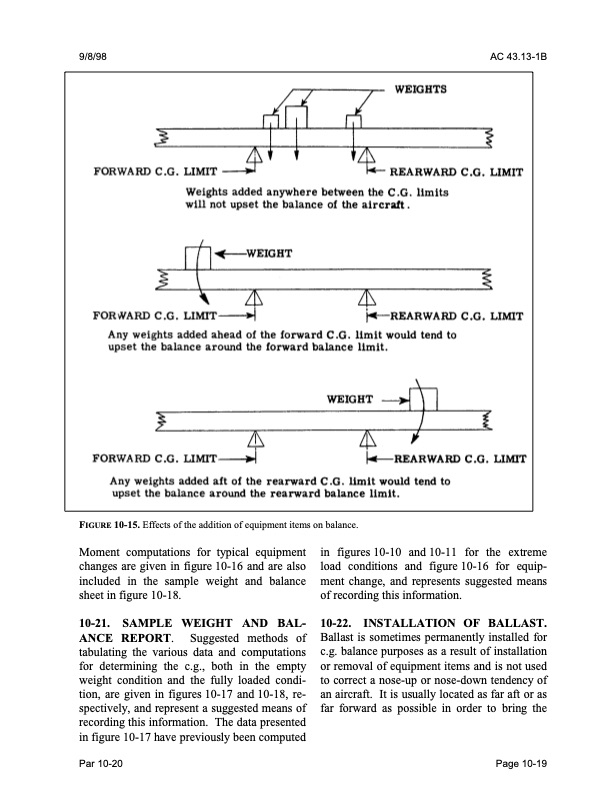

9/8/98 AC 43.13-1B FIGURE 10-15. Effects of the addition of equipment items on balance. Moment computations for typical equipment changes are given in figure 10-16 and are also included in the sample weight and balance sheet in figure 10-18. 10-21. SAMPLE WEIGHT AND BAL- ANCE REPORT. Suggested methods of tabulating the various data and computations for determining the c.g., both in the empty weight condition and the fully loaded condi tion, are given in figures 10-17 and 10-18, re spectively, and represent a suggested means of recording this information. The data presented in figure 10-17 have previously been computed and 10-11 for the extreme and figure 10-16 for equip Par 10-20 Page 10-19 in figures 10-10 load conditions ment change, and represents suggested means of recording this information. 10-22. INSTALLATION OF BALLAST. Ballast is sometimes permanently installed for c.g. balance purposes as a result of installation or removal of equipment items and is not used to correct a nose-up or nose-down tendency of an aircraft. It is usually located as far aft or as far forward as possible in order to bring thePDF Image | AFS-640
