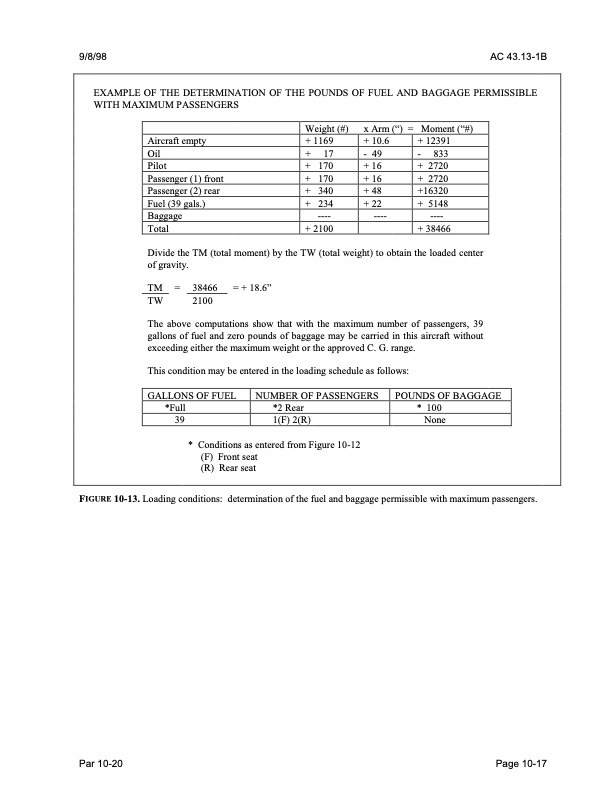

9/8/98 AC 43.13-1B EXAMPLE OF THE DETERMINATION OF THE POUNDS OF FUEL AND BAGGAGE PERMISSIBLE WITH MAXIMUM PASSENGERS Weight (#) + 1169 + 17 + 170 + 170 + 340 + 234 --- + 2100 x Arm (“) = Moment (“#) Aircraft empty Oil Pilot Passenger (1) front Passenger (2) rear Fuel (39 gals.) Baggage Total + 10.6 -49 +16 +16 +48 +22 --- + 12391 - 833 + 2720 + 2720 +16320 + 5148 --- + 38466 Divide the TM (total moment) by the TW (total weight) to obtain the loaded center of gravity. TM = 38466 = + 18.6” TW 2100 The above computations show that with the maximum number of passengers, 39 gallons of fuel and zero pounds of baggage may be carried in this aircraft without exceeding either the maximum weight or the approved C. G. range. This condition may be entered in the loading schedule as follows: GALLONS OF FUEL *Full 39 NUMBER OF PASSENGERS *2 Rear 1(F) 2(R) POUNDS OF BAGGAGE * 100 None * Conditions as entered from Figure 10-12 (F) Front seat (R) Rear seat FIGURE 10-13. Loading conditions: determination of the fuel and baggage permissible with maximum passengers. Par 10-20 Page 10-17PDF Image | AFS-640
