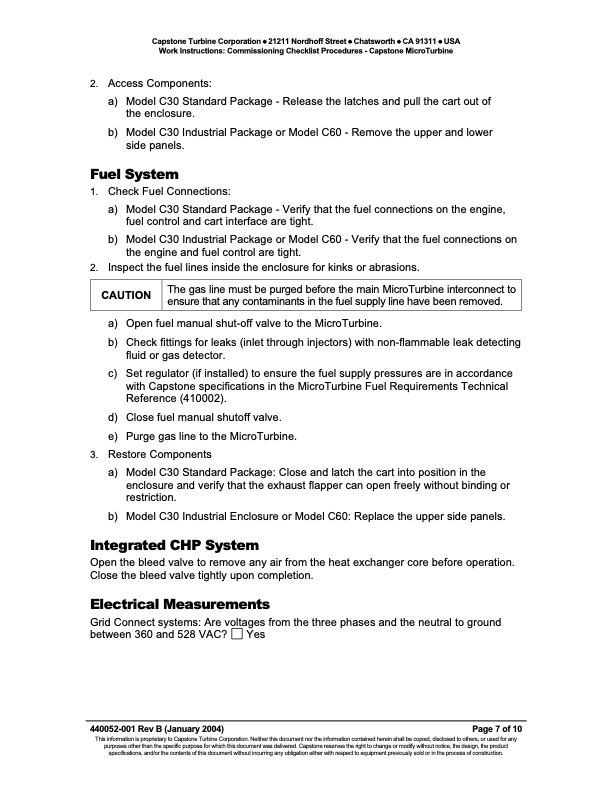

Text from PDF Page: 007
Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Commissioning Checklist Procedures - Capstone MicroTurbine 2. Access Components: a) Model C30 Standard Package - Release the latches and pull the cart out of the enclosure. b) Model C30 Industrial Package or Model C60 - Remove the upper and lower side panels. Fuel System 1. 2. Check Fuel Connections: a) Model C30 Standard Package - Verify that the fuel connections on the engine, fuel control and cart interface are tight. b) Model C30 Industrial Package or Model C60 - Verify that the fuel connections on the engine and fuel control are tight. Inspect the fuel lines inside the enclosure for kinks or abrasions. CAUTION The gas line must be purged before the main MicroTurbine interconnect to ensure that any contaminants in the fuel supply line have been removed. 3. a) Open fuel manual shut-off valve to the MicroTurbine. b) Check fittings for leaks (inlet through injectors) with non-flammable leak detecting fluid or gas detector. c) Set regulator (if installed) to ensure the fuel supply pressures are in accordance with Capstone specifications in the MicroTurbine Fuel Requirements Technical Reference (410002). d) Close fuel manual shutoff valve. e) Purge gas line to the MicroTurbine. Restore Components a) Model C30 Standard Package: Close and latch the cart into position in the enclosure and verify that the exhaust flapper can open freely without binding or restriction. b) Model C30 Industrial Enclosure or Model C60: Replace the upper side panels. Integrated CHP System Open the bleed valve to remove any air from the heat exchanger core before operation. Close the bleed valve tightly upon completion. Electrical Measurements Grid Connect systems: Are voltages from the three phases and the neutral to ground between 360 and 528 VAC? Yes 440052-001 Rev B (January 2004) Page 7 of 10 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions Commissioning Checklist Procedures Capstone MicroTurbine
