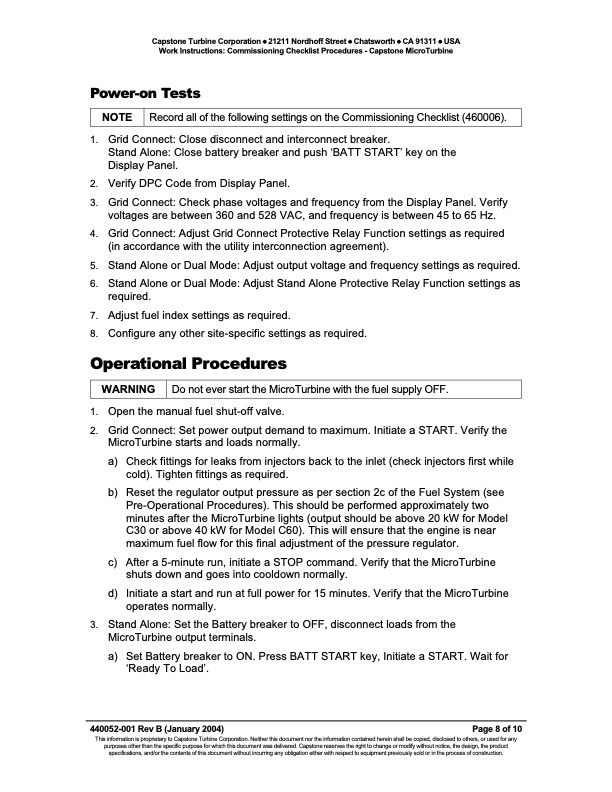

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Work Instructions: Commissioning Checklist Procedures - Capstone MicroTurbine Power-on Tests NOTE Record all of the following settings on the Commissioning Checklist (460006). 1. Grid Connect: Close disconnect and interconnect breaker. Stand Alone: Close battery breaker and push ‘BATT START’ key on the Display Panel. 2. Verify DPC Code from Display Panel. 3. Grid Connect: Check phase voltages and frequency from the Display Panel. Verify voltages are between 360 and 528 VAC, and frequency is between 45 to 65 Hz. 4. Grid Connect: Adjust Grid Connect Protective Relay Function settings as required (in accordance with the utility interconnection agreement). 5. Stand Alone or Dual Mode: Adjust output voltage and frequency settings as required. 6. Stand Alone or Dual Mode: Adjust Stand Alone Protective Relay Function settings as required. 7. Adjust fuel index settings as required. 8. Configure any other site-specific settings as required. Operational Procedures WARNING Do not ever start the MicroTurbine with the fuel supply OFF. 1. Open the manual fuel shut-off valve. 2. Grid Connect: Set power output demand to maximum. Initiate a START. Verify the MicroTurbine starts and loads normally. a) Check fittings for leaks from injectors back to the inlet (check injectors first while cold). Tighten fittings as required. b) Reset the regulator output pressure as per section 2c of the Fuel System (see Pre-Operational Procedures). This should be performed approximately two minutes after the MicroTurbine lights (output should be above 20 kW for Model C30 or above 40 kW for Model C60). This will ensure that the engine is near maximum fuel flow for this final adjustment of the pressure regulator. c) After a 5-minute run, initiate a STOP command. Verify that the MicroTurbine shuts down and goes into cooldown normally. d) Initiate a start and run at full power for 15 minutes. Verify that the MicroTurbine operates normally. 3. Stand Alone: Set the Battery breaker to OFF, disconnect loads from the MicroTurbine output terminals. a) Set Battery breaker to ON. Press BATT START key, Initiate a START. Wait for ‘Ready To Load’. 440052-001 Rev B (January 2004) Page 8 of 10 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Work Instructions Commissioning Checklist Procedures Capstone MicroTurbine
