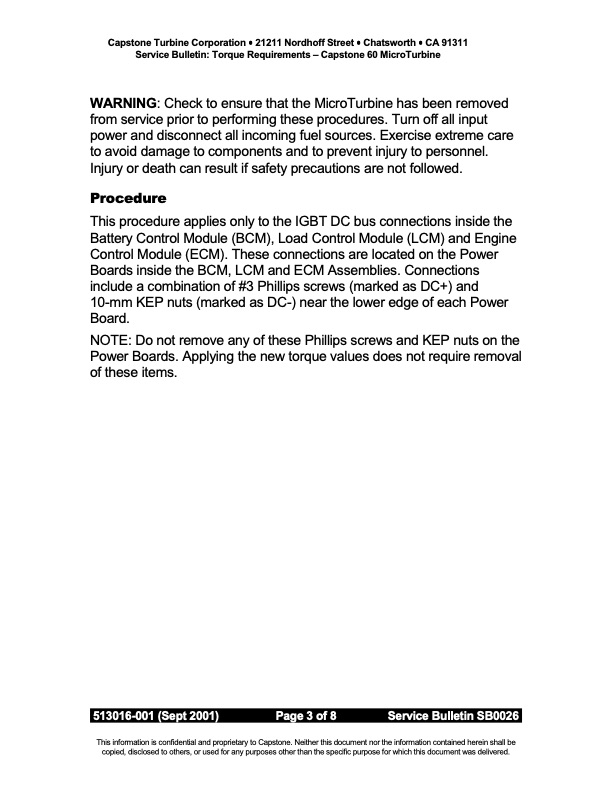

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 Service Bulletin: Torque Requirements – Capstone 60 MicroTurbine WARNING: Check to ensure that the MicroTurbine has been removed from service prior to performing these procedures. Turn off all input power and disconnect all incoming fuel sources. Exercise extreme care to avoid damage to components and to prevent injury to personnel. Injury or death can result if safety precautions are not followed. Procedure This procedure applies only to the IGBT DC bus connections inside the Battery Control Module (BCM), Load Control Module (LCM) and Engine Control Module (ECM). These connections are located on the Power Boards inside the BCM, LCM and ECM Assemblies. Connections include a combination of #3 Phillips screws (marked as DC+) and 10-mm KEP nuts (marked as DC-) near the lower edge of each Power Board. NOTE: Do not remove any of these Phillips screws and KEP nuts on the Power Boards. Applying the new torque values does not require removal of these items. 513016-001 (Sept 2001) Page 3 of 8 Service Bulletin SB0026. This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Torque Requirements on Electrical Connections Capstone 60 MicroTurbines
