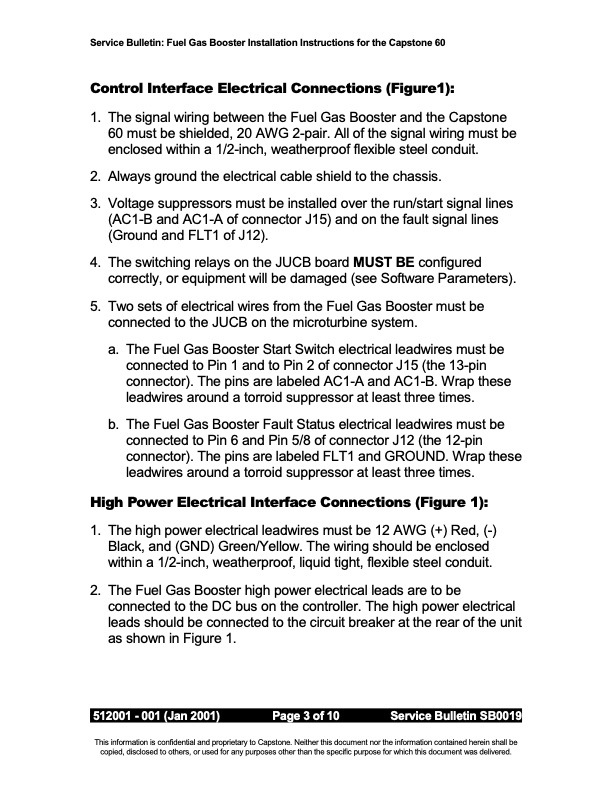

Service Bulletin: Fuel Gas Booster Installation Instructions for the Capstone 60 Control Interface Electrical Connections (Figure1): 1. The signal wiring between the Fuel Gas Booster and the Capstone 60 must be shielded, 20 AWG 2-pair. All of the signal wiring must be enclosed within a 1/2-inch, weatherproof flexible steel conduit. 2. Always ground the electrical cable shield to the chassis. 3. Voltage suppressors must be installed over the run/start signal lines (AC1-B and AC1-A of connector J15) and on the fault signal lines (Ground and FLT1 of J12). 4. The switching relays on the JUCB board MUST BE configured correctly, or equipment will be damaged (see Software Parameters). 5. Two sets of electrical wires from the Fuel Gas Booster must be connected to the JUCB on the microturbine system. a. The Fuel Gas Booster Start Switch electrical leadwires must be connected to Pin 1 and to Pin 2 of connector J15 (the 13-pin connector). The pins are labeled AC1-A and AC1-B. Wrap these leadwires around a torroid suppressor at least three times. b. The Fuel Gas Booster Fault Status electrical leadwires must be connected to Pin 6 and Pin 5/8 of connector J12 (the 12-pin connector). The pins are labeled FLT1 and GROUND. Wrap these leadwires around a torroid suppressor at least three times. High Power Electrical Interface Connections (Figure 1): 1. The high power electrical leadwires must be 12 AWG (+) Red, (-) Black, and (GND) Green/Yellow. The wiring should be enclosed within a 1/2-inch, weatherproof, liquid tight, flexible steel conduit. 2. The Fuel Gas Booster high power electrical leads are to be connected to the DC bus on the controller. The high power electrical leads should be connected to the circuit breaker at the rear of the unit as shown in Figure 1. 512001 - 001 (Jan 2001) Page 3 of 10 Service Bulletin SB0019 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Fuel Gas Booster Installation Instructions for Capstone 60 (Low Pressure Natural Gas Grid Connect Only)
