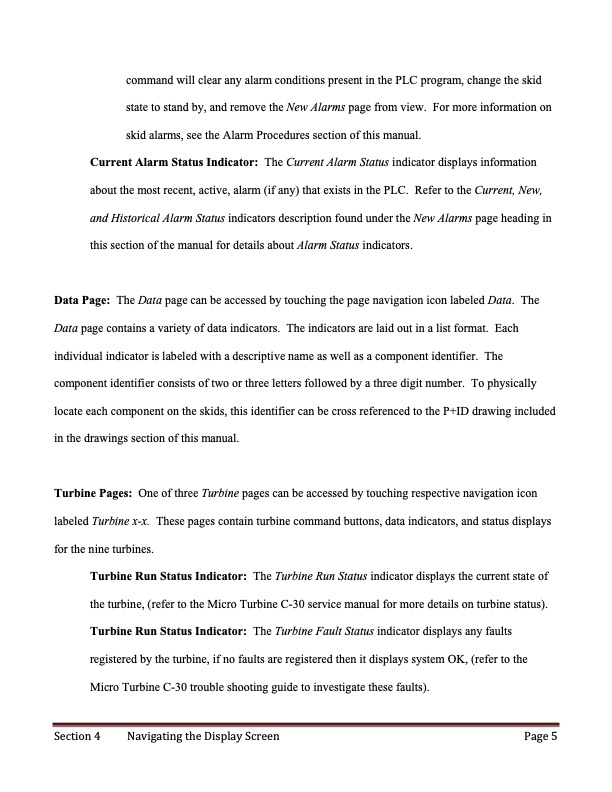

command will clear any alarm conditions present in the PLC program, change the skid state to stand by, and remove the New Alarms page from view. For more information on skid alarms, see the Alarm Procedures section of this manual. Current Alarm Status Indicator: The Current Alarm Status indicator displays information about the most recent, active, alarm (if any) that exists in the PLC. Refer to the Current, New, and Historical Alarm Status indicators description found under the New Alarms page heading in this section of the manual for details about Alarm Status indicators. Data Page: The Data page can be accessed by touching the page navigation icon labeled Data. The Data page contains a variety of data indicators. The indicators are laid out in a list format. Each individual indicator is labeled with a descriptive name as well as a component identifier. The component identifier consists of two or three letters followed by a three digit number. To physically locate each component on the skids, this identifier can be cross referenced to the P+ID drawing included in the drawings section of this manual. Turbine Pages: One of three Turbine pages can be accessed by touching respective navigation icon labeled Turbine x-x. These pages contain turbine command buttons, data indicators, and status displays for the nine turbines. Turbine Run Status Indicator: The Turbine Run Status indicator displays the current state of the turbine, (refer to the Micro Turbine C-30 service manual for more details on turbine status). Turbine Run Status Indicator: The Turbine Fault Status indicator displays any faults registered by the turbine, if no faults are registered then it displays system OK, (refer to the Micro Turbine C-30 trouble shooting guide to investigate these faults). Section 4 Navigating the Display Screen Page 5PDF Image | ST PETERSBURG TABLE OF CONTENTS
