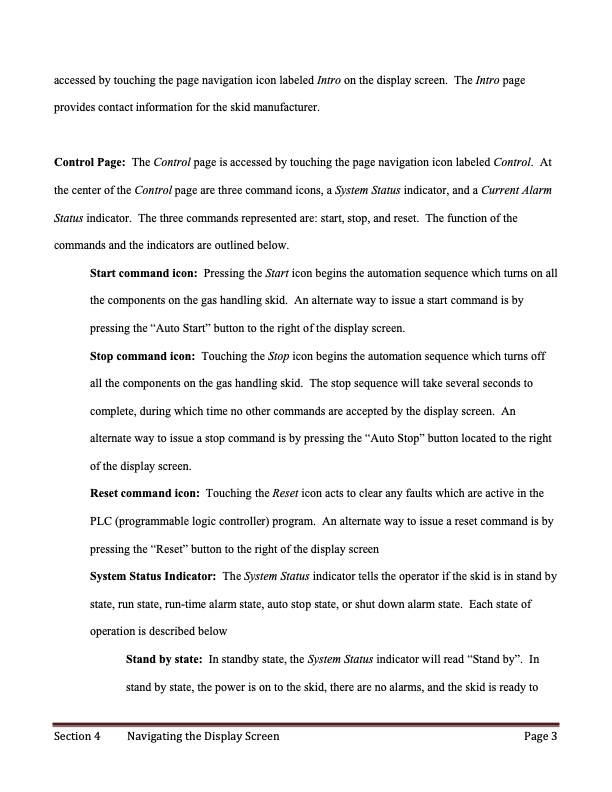

accessed by touching the page navigation icon labeled Intro on the display screen. The Intro page provides contact information for the skid manufacturer. Control Page: The Control page is accessed by touching the page navigation icon labeled Control. At the center of the Control page are three command icons, a System Status indicator, and a Current Alarm Status indicator. The three commands represented are: start, stop, and reset. The function of the commands and the indicators are outlined below. Start command icon: Pressing the Start icon begins the automation sequence which turns on all the components on the gas handling skid. An alternate way to issue a start command is by pressing the “Auto Start” button to the right of the display screen. Stop command icon: Touching the Stop icon begins the automation sequence which turns off all the components on the gas handling skid. The stop sequence will take several seconds to complete, during which time no other commands are accepted by the display screen. An alternate way to issue a stop command is by pressing the “Auto Stop” button located to the right of the display screen. Reset command icon: Touching the Reset icon acts to clear any faults which are active in the PLC (programmable logic controller) program. An alternate way to issue a reset command is by pressing the “Reset” button to the right of the display screen System Status Indicator: The System Status indicator tells the operator if the skid is in stand by state, run state, run-time alarm state, auto stop state, or shut down alarm state. Each state of operation is described below Stand by state: In standby state, the System Status indicator will read “Stand by”. In stand by state, the power is on to the skid, there are no alarms, and the skid is ready to Section 4 Navigating the Display Screen Page 3PDF Image | ST PETERSBURG TABLE OF CONTENTS
