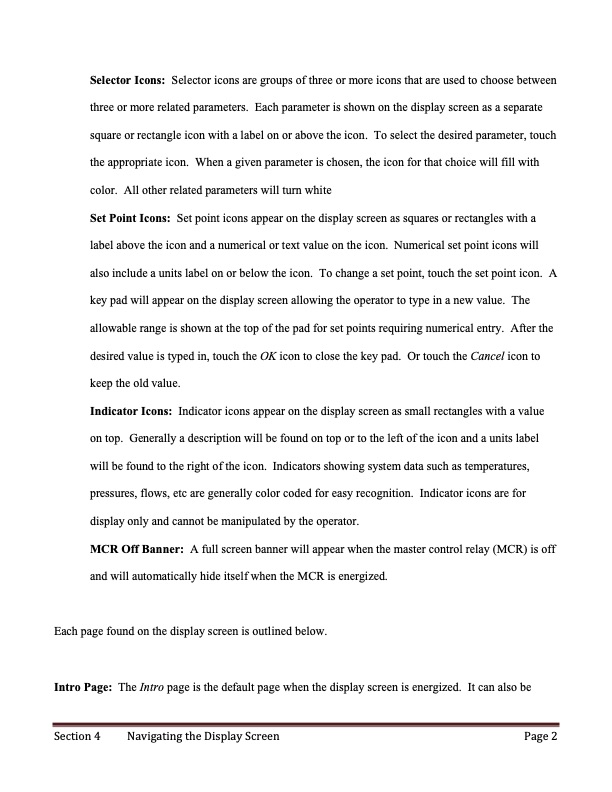

Selector Icons: Selector icons are groups of three or more icons that are used to choose between three or more related parameters. Each parameter is shown on the display screen as a separate square or rectangle icon with a label on or above the icon. To select the desired parameter, touch the appropriate icon. When a given parameter is chosen, the icon for that choice will fill with color. All other related parameters will turn white Set Point Icons: Set point icons appear on the display screen as squares or rectangles with a label above the icon and a numerical or text value on the icon. Numerical set point icons will also include a units label on or below the icon. To change a set point, touch the set point icon. A key pad will appear on the display screen allowing the operator to type in a new value. The allowable range is shown at the top of the pad for set points requiring numerical entry. After the desired value is typed in, touch the OK icon to close the key pad. Or touch the Cancel icon to keep the old value. Indicator Icons: Indicator icons appear on the display screen as small rectangles with a value on top. Generally a description will be found on top or to the left of the icon and a units label will be found to the right of the icon. Indicators showing system data such as temperatures, pressures, flows, etc are generally color coded for easy recognition. Indicator icons are for display only and cannot be manipulated by the operator. MCR Off Banner: A full screen banner will appear when the master control relay (MCR) is off and will automatically hide itself when the MCR is energized. Each page found on the display screen is outlined below. Intro Page: The Intro page is the default page when the display screen is energized. It can also be Section 4 Navigating the Display Screen Page 2PDF Image | ST PETERSBURG TABLE OF CONTENTS
