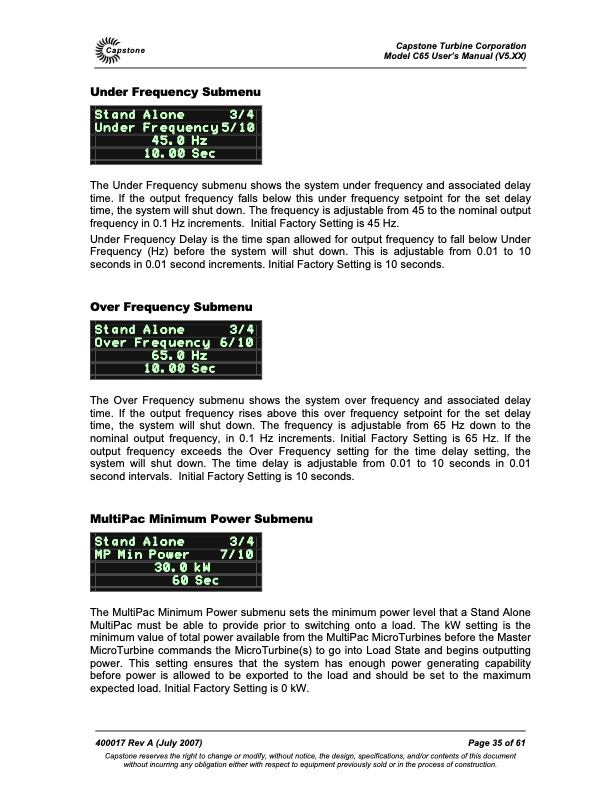

Capstone Under Frequency Submenu Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) Stand Alone 3/4 Under Frequency 5/10 45.0 Hz 10.00 Sec The Under Frequency submenu shows the system under frequency and associated delay time. If the output frequency falls below this under frequency setpoint for the set delay time, the system will shut down. The frequency is adjustable from 45 to the nominal output frequency in 0.1 Hz increments. Initial Factory Setting is 45 Hz. Under Frequency Delay is the time span allowed for output frequency to fall below Under Frequency (Hz) before the system will shut down. This is adjustable from 0.01 to 10 seconds in 0.01 second increments. Initial Factory Setting is 10 seconds. Over Frequency Submenu The Over Frequency submenu shows the system over frequency and associated delay time. If the output frequency rises above this over frequency setpoint for the set delay time, the system will shut down. The frequency is adjustable from 65 Hz down to the nominal output frequency, in 0.1 Hz increments. Initial Factory Setting is 65 Hz. If the output frequency exceeds the Over Frequency setting for the time delay setting, the system will shut down. The time delay is adjustable from 0.01 to 10 seconds in 0.01 second intervals. Initial Factory Setting is 10 seconds. MultiPac Minimum Power Submenu The MultiPac Minimum Power submenu sets the minimum power level that a Stand Alone MultiPac must be able to provide prior to switching onto a load. The kW setting is the minimum value of total power available from the MultiPac MicroTurbines before the Master MicroTurbine commands the MicroTurbine(s) to go into Load State and begins outputting power. This setting ensures that the system has enough power generating capability before power is allowed to be exported to the load and should be set to the maximum expected load. Initial Factory Setting is 0 kW. 400017 Rev A (July 2007) Page 35 of 61 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Stand Alone 3/4 Over Frequency 6/10 65.0 Hz 10.00 Sec Stand Alone 3/4 MP Min Power 7/10 30.0 kW 60 SecPDF Image | C65 5xx
