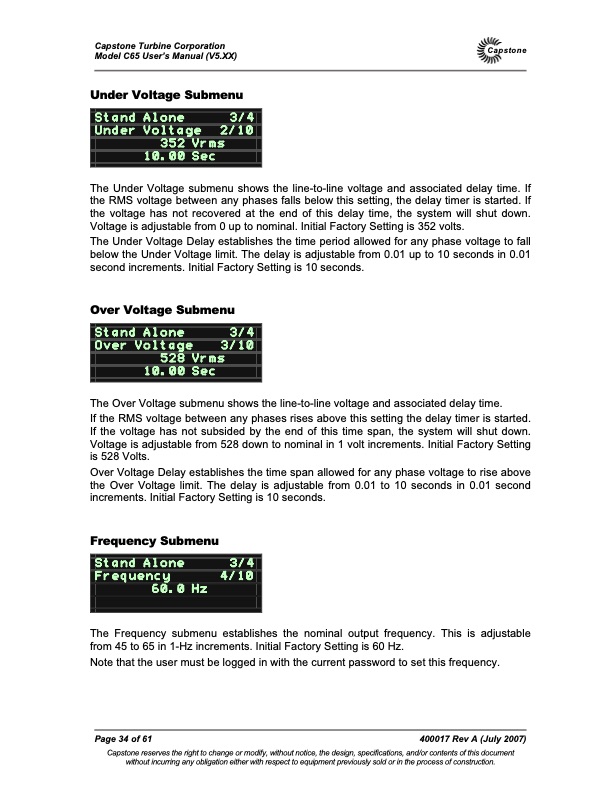

Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) Under Voltage Submenu Capstone Stand Alone 3/4 Under Voltage 2/10 352 Vrms 10.00 Sec The Under Voltage submenu shows the line-to-line voltage and associated delay time. If the RMS voltage between any phases falls below this setting, the delay timer is started. If the voltage has not recovered at the end of this delay time, the system will shut down. Voltage is adjustable from 0 up to nominal. Initial Factory Setting is 352 volts. The Under Voltage Delay establishes the time period allowed for any phase voltage to fall below the Under Voltage limit. The delay is adjustable from 0.01 up to 10 seconds in 0.01 second increments. Initial Factory Setting is 10 seconds. Over Voltage Submenu The Over Voltage submenu shows the line-to-line voltage and associated delay time. If the RMS voltage between any phases rises above this setting the delay timer is started. If the voltage has not subsided by the end of this time span, the system will shut down. Voltage is adjustable from 528 down to nominal in 1 volt increments. Initial Factory Setting is 528 Volts. Over Voltage Delay establishes the time span allowed for any phase voltage to rise above the Over Voltage limit. The delay is adjustable from 0.01 to 10 seconds in 0.01 second increments. Initial Factory Setting is 10 seconds. Frequency Submenu The Frequency submenu establishes the nominal output frequency. This is adjustable from 45 to 65 in 1-Hz increments. Initial Factory Setting is 60 Hz. Note that the user must be logged in with the current password to set this frequency. Page 34 of 61 400017 Rev A (July 2007) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Stand Alone 3/4 Over Voltage 3/10 528 Vrms 10.00 Sec Stand Alone 3/4 Frequency 4/10 60.0 HzPDF Image | C65 5xx
