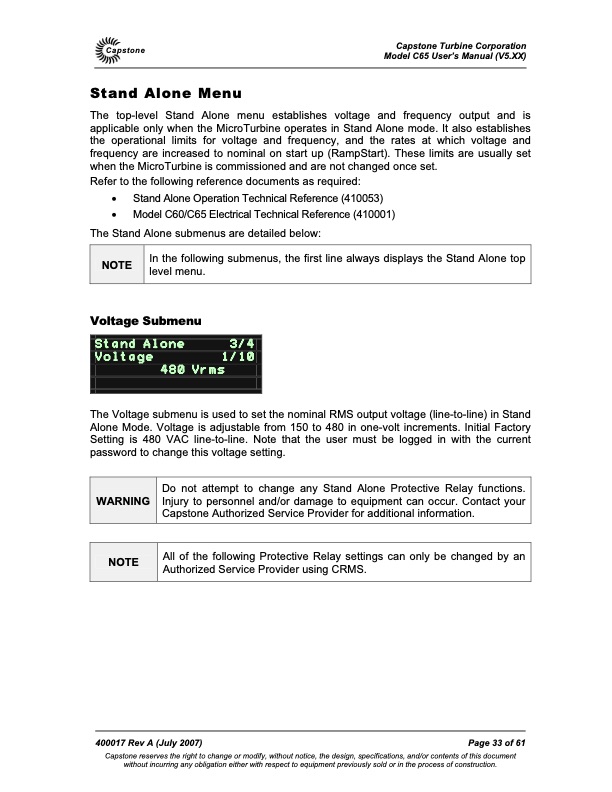

Capstone Stand Alone Menu Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) The top-level Stand Alone menu establishes voltage and frequency output and is applicable only when the MicroTurbine operates in Stand Alone mode. It also establishes the operational limits for voltage and frequency, and the rates at which voltage and frequency are increased to nominal on start up (RampStart). These limits are usually set when the MicroTurbine is commissioned and are not changed once set. Refer to the following reference documents as required: • Stand Alone Operation Technical Reference (410053) • Model C60/C65 Electrical Technical Reference (410001) The Stand Alone submenus are detailed below: In the following submenus, the first line always displays the Stand Alone top level menu. Voltage Submenu The Voltage submenu is used to set the nominal RMS output voltage (line-to-line) in Stand Alone Mode. Voltage is adjustable from 150 to 480 in one-volt increments. Initial Factory Setting is 480 VAC line-to-line. Note that the user must be logged in with the current password to change this voltage setting. All of the following Protective Relay settings can only be changed by an Authorized Service Provider using CRMS. NOTE Stand Alone 3/4 Voltage 1/10 480 Vrms WARNING Do not attempt to change any Stand Alone Protective Relay functions. Injury to personnel and/or damage to equipment can occur. Contact your Capstone Authorized Service Provider for additional information. NOTE 400017 Rev A (July 2007) Page 33 of 61 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C65 5xx
