Text from PDF Page: 032

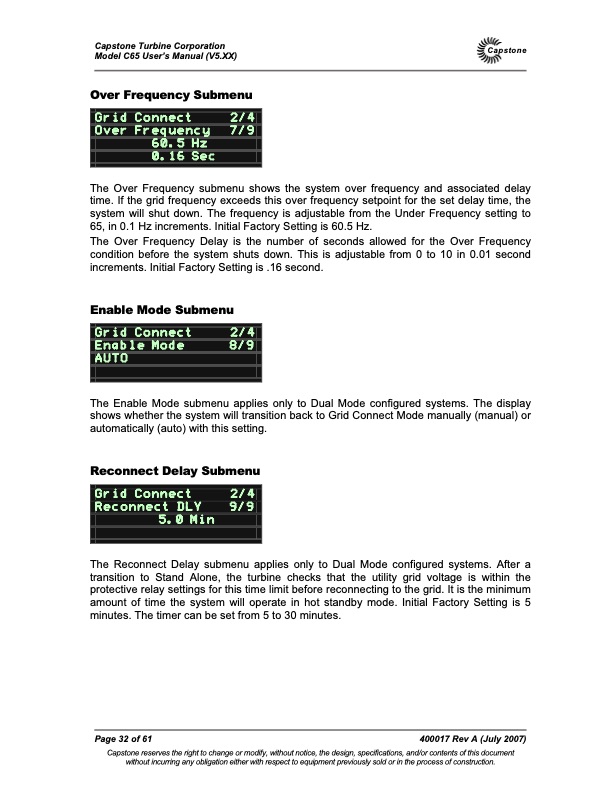

Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) Over Frequency Submenu Capstone Grid Connect 2/4 Over Frequency 7/9 60.5 Hz 0.16 Sec The Over Frequency submenu shows the system over frequency and associated delay time. If the grid frequency exceeds this over frequency setpoint for the set delay time, the system will shut down. The frequency is adjustable from the Under Frequency setting to 65, in 0.1 Hz increments. Initial Factory Setting is 60.5 Hz. The Over Frequency Delay is the number of seconds allowed for the Over Frequency condition before the system shuts down. This is adjustable from 0 to 10 in 0.01 second increments. Initial Factory Setting is .16 second. Enable Mode Submenu The Enable Mode submenu applies only to Dual Mode configured systems. The display shows whether the system will transition back to Grid Connect Mode manually (manual) or automatically (auto) with this setting. Reconnect Delay Submenu The Reconnect Delay submenu applies only to Dual Mode configured systems. After a transition to Stand Alone, the turbine checks that the utility grid voltage is within the protective relay settings for this time limit before reconnecting to the grid. It is the minimum amount of time the system will operate in hot standby mode. Initial Factory Setting is 5 minutes. The timer can be set from 5 to 30 minutes. Page 32 of 61 400017 Rev A (July 2007) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Grid Connect 2/4 Enable Mode 8/9 AUTO Grid Connect 2/4 Reconnect DLY 9/9 5.0 Min
