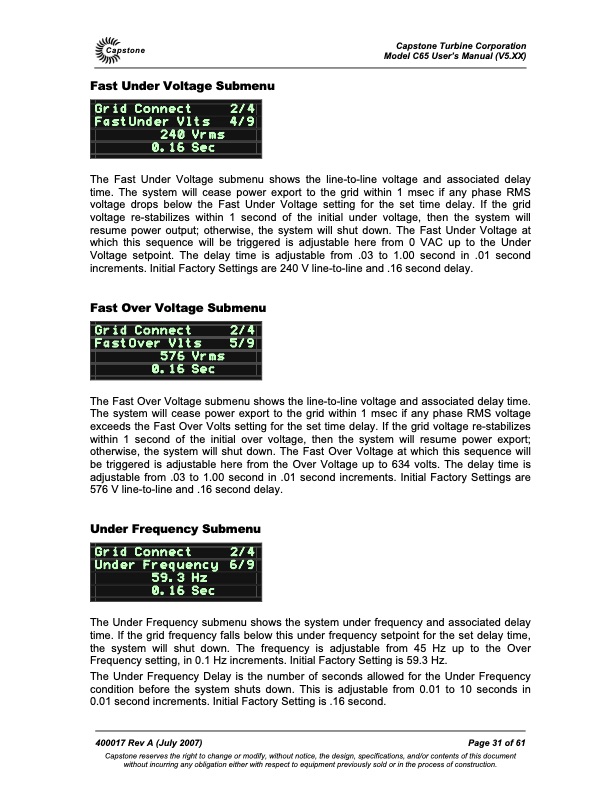

Capstone Fast Under Voltage Submenu Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) Grid Connect 2/4 FastUnder Vlts 4/9 240 Vrms 0.16 Sec The Fast Under Voltage submenu shows the line-to-line voltage and associated delay time. The system will cease power export to the grid within 1 msec if any phase RMS voltage drops below the Fast Under Voltage setting for the set time delay. If the grid voltage re-stabilizes within 1 second of the initial under voltage, then the system will resume power output; otherwise, the system will shut down. The Fast Under Voltage at which this sequence will be triggered is adjustable here from 0 VAC up to the Under Voltage setpoint. The delay time is adjustable from .03 to 1.00 second in .01 second increments. Initial Factory Settings are 240 V line-to-line and .16 second delay. Fast Over Voltage Submenu The Fast Over Voltage submenu shows the line-to-line voltage and associated delay time. The system will cease power export to the grid within 1 msec if any phase RMS voltage exceeds the Fast Over Volts setting for the set time delay. If the grid voltage re-stabilizes within 1 second of the initial over voltage, then the system will resume power export; otherwise, the system will shut down. The Fast Over Voltage at which this sequence will be triggered is adjustable here from the Over Voltage up to 634 volts. The delay time is adjustable from .03 to 1.00 second in .01 second increments. Initial Factory Settings are 576 V line-to-line and .16 second delay. Under Frequency Submenu The Under Frequency submenu shows the system under frequency and associated delay time. If the grid frequency falls below this under frequency setpoint for the set delay time, the system will shut down. The frequency is adjustable from 45 Hz up to the Over Frequency setting, in 0.1 Hz increments. Initial Factory Setting is 59.3 Hz. The Under Frequency Delay is the number of seconds allowed for the Under Frequency condition before the system shuts down. This is adjustable from 0.01 to 10 seconds in 0.01 second increments. Initial Factory Setting is .16 second. 400017 Rev A (July 2007) Page 31 of 61 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Grid Connect 2/4 FastOver Vlts 5/9 576 Vrms 0.16 Sec Grid Connect 2/4 Under Frequency 6/9 59.3 Hz 0.16 SecPDF Image | C65 5xx
