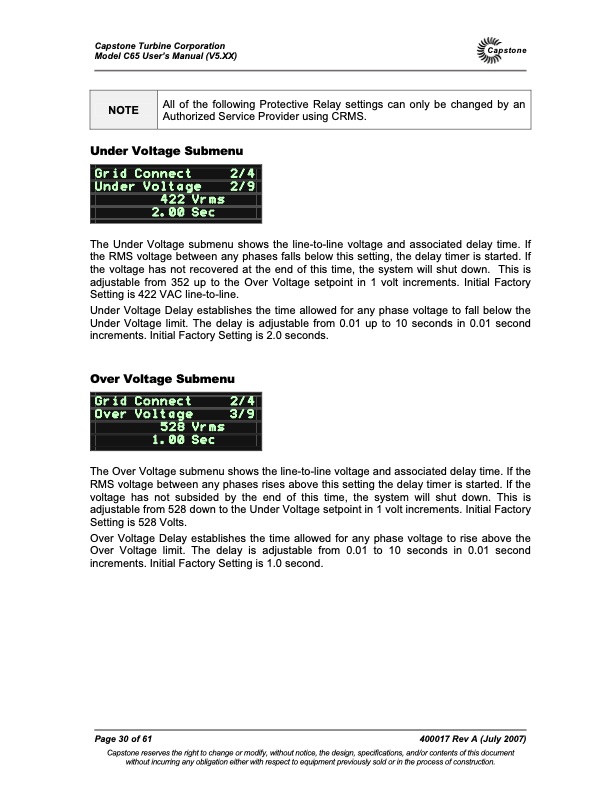

Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) Capstone All of the following Protective Relay settings can only be changed by an Authorized Service Provider using CRMS. Under Voltage Submenu The Under Voltage submenu shows the line-to-line voltage and associated delay time. If the RMS voltage between any phases falls below this setting, the delay timer is started. If the voltage has not recovered at the end of this time, the system will shut down. This is adjustable from 352 up to the Over Voltage setpoint in 1 volt increments. Initial Factory Setting is 422 VAC line-to-line. Under Voltage Delay establishes the time allowed for any phase voltage to fall below the Under Voltage limit. The delay is adjustable from 0.01 up to 10 seconds in 0.01 second increments. Initial Factory Setting is 2.0 seconds. Over Voltage Submenu The Over Voltage submenu shows the line-to-line voltage and associated delay time. If the RMS voltage between any phases rises above this setting the delay timer is started. If the voltage has not subsided by the end of this time, the system will shut down. This is adjustable from 528 down to the Under Voltage setpoint in 1 volt increments. Initial Factory Setting is 528 Volts. Over Voltage Delay establishes the time allowed for any phase voltage to rise above the Over Voltage limit. The delay is adjustable from 0.01 to 10 seconds in 0.01 second increments. Initial Factory Setting is 1.0 second. NOTE Grid Connect 2/4 Under Voltage 2/9 422 Vrms 2.00 Sec Grid Connect 2/4 Over Voltage 3/9 528 Vrms 1.00 Sec Page 30 of 61 400017 Rev A (July 2007) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C65 5xx
