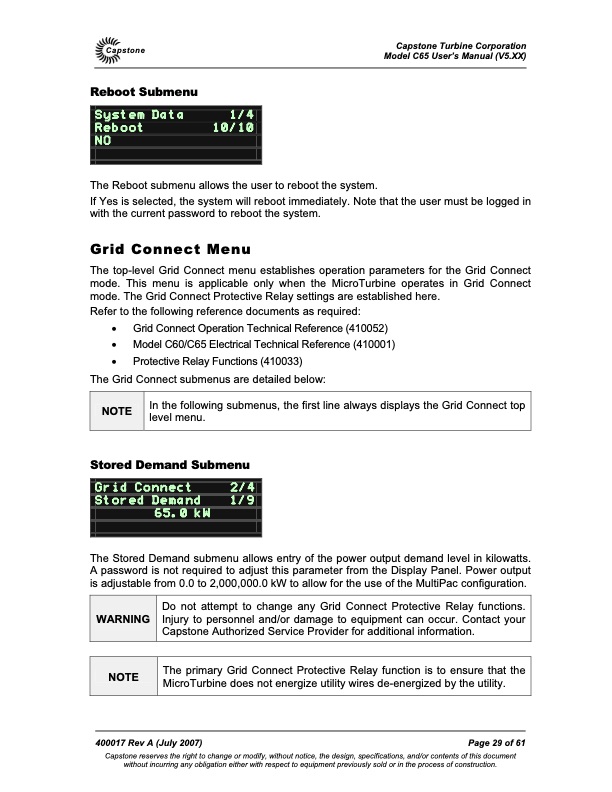

Text from PDF Page: 029
Capstone Reboot Submenu The Reboot submenu allows the user to reboot the system. Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) System Data 1/4 Reboot 10/10 NO If Yes is selected, the system will reboot immediately. Note that the user must be logged in with the current password to reboot the system. Grid Connect Menu The top-level Grid Connect menu establishes operation parameters for the Grid Connect mode. This menu is applicable only when the MicroTurbine operates in Grid Connect mode. The Grid Connect Protective Relay settings are established here. Refer to the following reference documents as required: • Grid Connect Operation Technical Reference (410052) • Model C60/C65 Electrical Technical Reference (410001) • Protective Relay Functions (410033) The Grid Connect submenus are detailed below: In the following submenus, the first line always displays the Grid Connect top level menu. Stored Demand Submenu The Stored Demand submenu allows entry of the power output demand level in kilowatts. A password is not required to adjust this parameter from the Display Panel. Power output is adjustable from 0.0 to 2,000,000.0 kW to allow for the use of the MultiPac configuration. The primary Grid Connect Protective Relay function is to ensure that the MicroTurbine does not energize utility wires de-energized by the utility. 400017 Rev A (July 2007) Page 29 of 61 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTE Grid Connect 2/4 Stored Demand 1/9 65.0 kW WARNING Do not attempt to change any Grid Connect Protective Relay functions. Injury to personnel and/or damage to equipment can occur. Contact your Capstone Authorized Service Provider for additional information. NOTEPDF Image | C65 5xx
