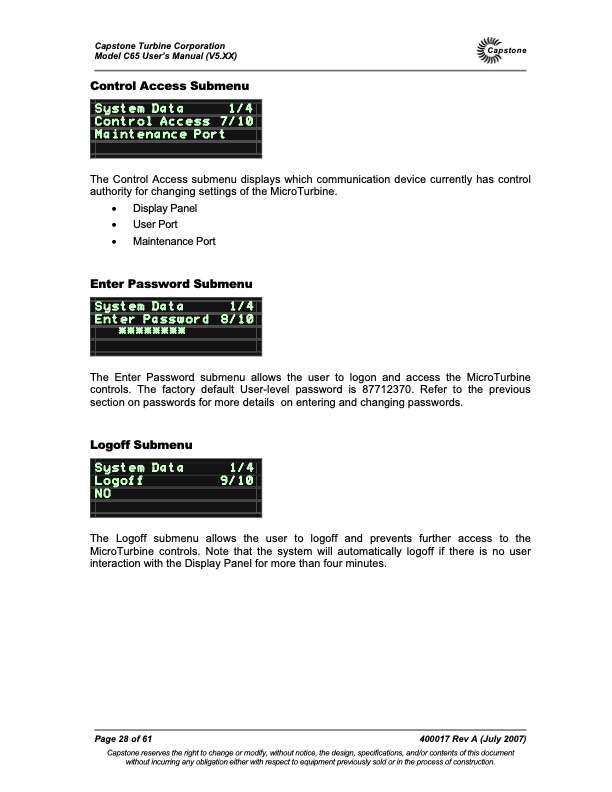

Capstone Turbine Corporation Model C65 User’s Manual (V5.XX) Control Access Submenu Capstone System Data 1/4 Control Access 7/10 Maintenance Port The Control Access submenu displays which communication device currently has control authority for changing settings of the MicroTurbine. • Display Panel • User Port • Maintenance Port Enter Password Submenu The Enter Password submenu allows the user to logon and access the MicroTurbine controls. The factory default User-level password is 87712370. Refer to the previous section on passwords for more details on entering and changing passwords. Logoff Submenu The Logoff submenu allows the user to logoff and prevents further access to the MicroTurbine controls. Note that the system will automatically logoff if there is no user interaction with the Display Panel for more than four minutes. System Data 1/4 Enter Password 8/10 ******** System Data 1/4 Logoff 9/10 NO Page 28 of 61 400017 Rev A (July 2007) Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | C65 5xx
