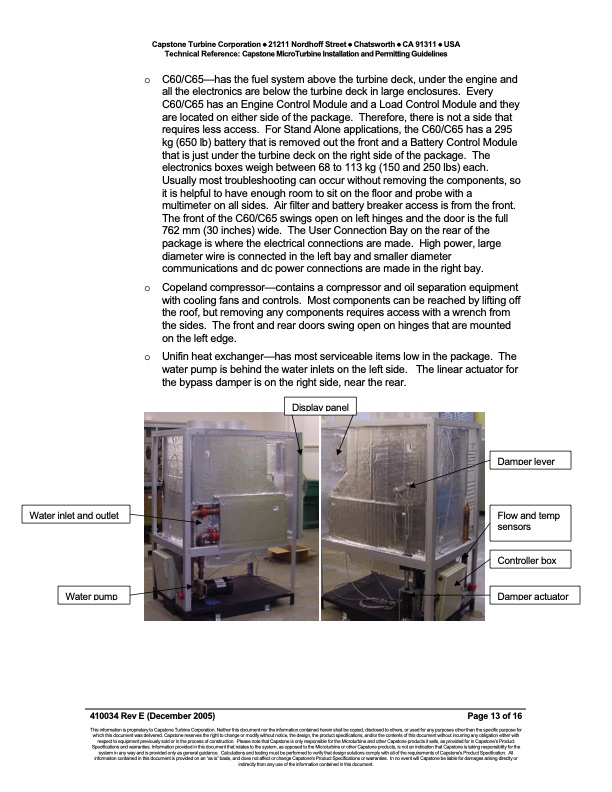

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Installation and Permitting Guidelines o C60/C65—hasthefuelsystemabovetheturbinedeck,undertheengineand all the electronics are below the turbine deck in large enclosures. Every C60/C65 has an Engine Control Module and a Load Control Module and they are located on either side of the package. Therefore, there is not a side that requires less access. For Stand Alone applications, the C60/C65 has a 295 kg (650 lb) battery that is removed out the front and a Battery Control Module that is just under the turbine deck on the right side of the package. The electronics boxes weigh between 68 to 113 kg (150 and 250 lbs) each. Usually most troubleshooting can occur without removing the components, so it is helpful to have enough room to sit on the floor and probe with a multimeter on all sides. Air filter and battery breaker access is from the front. The front of the C60/C65 swings open on left hinges and the door is the full 762 mm (30 inches) wide. The User Connection Bay on the rear of the package is where the electrical connections are made. High power, large diameter wire is connected in the left bay and smaller diameter communications and dc power connections are made in the right bay. o Copelandcompressor—containsacompressorandoilseparationequipment with cooling fans and controls. Most components can be reached by lifting off the roof, but removing any components requires access with a wrench from the sides. The front and rear doors swing open on hinges that are mounted on the left edge. o Unifin heat exchanger—has most serviceable items low in the package. The water pump is behind the water inlets on the left side. the bypass damper is on the right side, near the rear. The linear actuator for Damper lever Controller box Damper actuator Page 13 of 16 Display panel Water inlet and outlet Water pump 410034 Rev E (December 2005) This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respecttoequipmentpreviouslysoldorintheprocessofconstruction. PleasenotethatCapstoneisonlyresponsiblefortheMicroturbineandotherCapstoneproductsitsells,asprovidedforinCapstone’sProduct Specifications and warranties. Information provided in this document that relates to the system, as opposed to the Microturbine or other Capstone products, is not an indication that Capstone is taking responsibility for the systeminanywayandisprovidedonlyasgeneralguidance. CalculationsandtestingmustbeperformedtoverifythatdesignsolutionscomplywithalloftherequirementsofCapstone'sProductSpecification. All informationcontainedinthisdocumentisprovidedonan“asis”basis,anddoesnotaffectorchangeCapstone'sProductSpecificationsorwarranties. InnoeventwillCapstonebeliablefordamagesarisingdirectlyor indirectly from any use of the information contained in this document. Flow and temp sensorsPDF Image | Technical Reference Capstone MicroTurbine Installation and Permitting Guidelines
