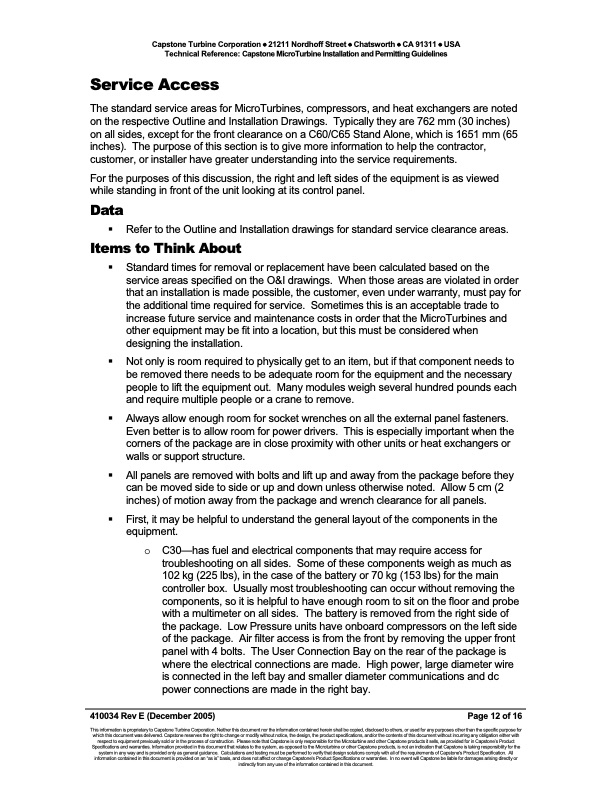

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Installation and Permitting Guidelines Service Access The standard service areas for MicroTurbines, compressors, and heat exchangers are noted on the respective Outline and Installation Drawings. Typically they are 762 mm (30 inches) on all sides, except for the front clearance on a C60/C65 Stand Alone, which is 1651 mm (65 inches). The purpose of this section is to give more information to help the contractor, customer, or installer have greater understanding into the service requirements. For the purposes of this discussion, the right and left sides of the equipment is as viewed while standing in front of the unit looking at its control panel. Data RefertotheOutlineandInstallationdrawingsforstandardserviceclearanceareas. Items to Think About Standard times for removal or replacement have been calculated based on the service areas specified on the O&I drawings. When those areas are violated in order that an installation is made possible, the customer, even under warranty, must pay for the additional time required for service. Sometimes this is an acceptable trade to increase future service and maintenance costs in order that the MicroTurbines and other equipment may be fit into a location, but this must be considered when designing the installation. Notonlyisroomrequiredtophysicallygettoanitem,butifthatcomponentneedsto be removed there needs to be adequate room for the equipment and the necessary people to lift the equipment out. Many modules weigh several hundred pounds each and require multiple people or a crane to remove. Alwaysallowenoughroomforsocketwrenchesonalltheexternalpanelfasteners. Even better is to allow room for power drivers. This is especially important when the corners of the package are in close proximity with other units or heat exchangers or walls or support structure. All panels are removed with bolts and lift up and away from the package before they can be moved side to side or up and down unless otherwise noted. Allow 5 cm (2 inches) of motion away from the package and wrench clearance for all panels. First, it may be helpful to understand the general layout of the components in the equipment. o C30—hasfuelandelectricalcomponentsthatmayrequireaccessfor troubleshooting on all sides. Some of these components weigh as much as 102 kg (225 lbs), in the case of the battery or 70 kg (153 lbs) for the main controller box. Usually most troubleshooting can occur without removing the components, so it is helpful to have enough room to sit on the floor and probe with a multimeter on all sides. The battery is removed from the right side of the package. Low Pressure units have onboard compressors on the left side of the package. Air filter access is from the front by removing the upper front panel with 4 bolts. The User Connection Bay on the rear of the package is where the electrical connections are made. High power, large diameter wire is connected in the left bay and smaller diameter communications and dc power connections are made in the right bay. 410034 Rev E (December 2005) Page 12 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respecttoequipmentpreviouslysoldorintheprocessofconstruction. PleasenotethatCapstoneisonlyresponsiblefortheMicroturbineandotherCapstoneproductsitsells,asprovidedforinCapstone’sProduct Specifications and warranties. Information provided in this document that relates to the system, as opposed to the Microturbine or other Capstone products, is not an indication that Capstone is taking responsibility for the systeminanywayandisprovidedonlyasgeneralguidance. CalculationsandtestingmustbeperformedtoverifythatdesignsolutionscomplywithalloftherequirementsofCapstone'sProductSpecification. All informationcontainedinthisdocumentisprovidedonan“asis”basis,anddoesnotaffectorchangeCapstone'sProductSpecificationsorwarranties. InnoeventwillCapstonebeliablefordamagesarisingdirectlyor indirectly from any use of the information contained in this document.PDF Image | Technical Reference Capstone MicroTurbine Installation and Permitting Guidelines
