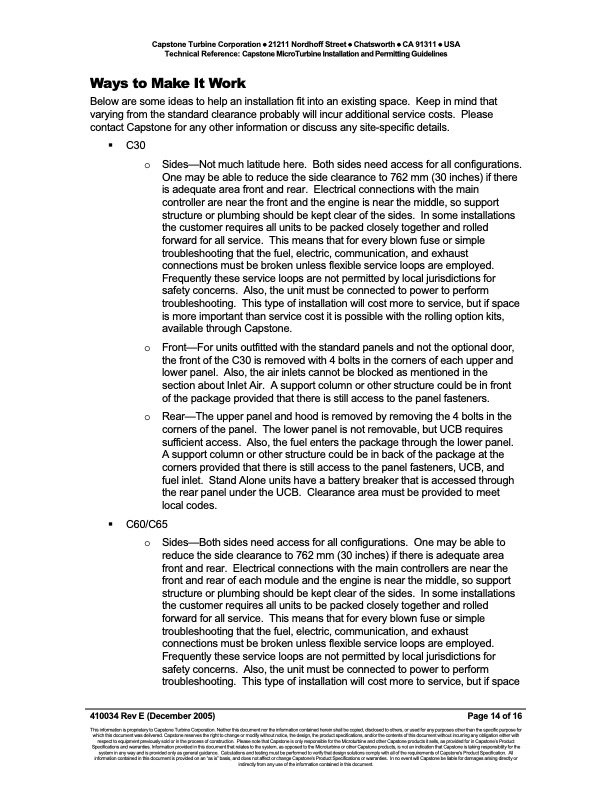

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone MicroTurbine Installation and Permitting Guidelines Ways to Make It Work Below are some ideas to help an installation fit into an existing space. Keep in mind that varying from the standard clearance probably will incur additional service costs. Please contact Capstone for any other information or discuss any site-specific details. C30 o Sides—Not much latitude here. Both sides need access for all configurations. One may be able to reduce the side clearance to 762 mm (30 inches) if there is adequate area front and rear. Electrical connections with the main controller are near the front and the engine is near the middle, so support structure or plumbing should be kept clear of the sides. In some installations the customer requires all units to be packed closely together and rolled forward for all service. This means that for every blown fuse or simple troubleshooting that the fuel, electric, communication, and exhaust connections must be broken unless flexible service loops are employed. Frequently these service loops are not permitted by local jurisdictions for safety concerns. Also, the unit must be connected to power to perform troubleshooting. This type of installation will cost more to service, but if space is more important than service cost it is possible with the rolling option kits, available through Capstone. o Front—Forunitsoutfittedwiththestandardpanelsandnottheoptionaldoor, the front of the C30 is removed with 4 bolts in the corners of each upper and lower panel. Also, the air inlets cannot be blocked as mentioned in the section about Inlet Air. A support column or other structure could be in front of the package provided that there is still access to the panel fasteners. o Rear—Theupperpanelandhoodisremovedbyremovingthe4boltsinthe corners of the panel. The lower panel is not removable, but UCB requires sufficient access. Also, the fuel enters the package through the lower panel. A support column or other structure could be in back of the package at the corners provided that there is still access to the panel fasteners, UCB, and fuel inlet. Stand Alone units have a battery breaker that is accessed through the rear panel under the UCB. Clearance area must be provided to meet local codes. C60/C65 o Sides—Both sides need access for all configurations. One may be able to reduce the side clearance to 762 mm (30 inches) if there is adequate area front and rear. Electrical connections with the main controllers are near the front and rear of each module and the engine is near the middle, so support structure or plumbing should be kept clear of the sides. In some installations the customer requires all units to be packed closely together and rolled forward for all service. This means that for every blown fuse or simple troubleshooting that the fuel, electric, communication, and exhaust connections must be broken unless flexible service loops are employed. Frequently these service loops are not permitted by local jurisdictions for safety concerns. Also, the unit must be connected to power to perform troubleshooting. This type of installation will cost more to service, but if space 410034 Rev E (December 2005) Page 14 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respecttoequipmentpreviouslysoldorintheprocessofconstruction. PleasenotethatCapstoneisonlyresponsiblefortheMicroturbineandotherCapstoneproductsitsells,asprovidedforinCapstone’sProduct Specifications and warranties. Information provided in this document that relates to the system, as opposed to the Microturbine or other Capstone products, is not an indication that Capstone is taking responsibility for the systeminanywayandisprovidedonlyasgeneralguidance. CalculationsandtestingmustbeperformedtoverifythatdesignsolutionscomplywithalloftherequirementsofCapstone'sProductSpecification. All informationcontainedinthisdocumentisprovidedonan“asis”basis,anddoesnotaffectorchangeCapstone'sProductSpecificationsorwarranties. InnoeventwillCapstonebeliablefordamagesarisingdirectlyor indirectly from any use of the information contained in this document.PDF Image | Technical Reference Capstone MicroTurbine Installation and Permitting Guidelines
