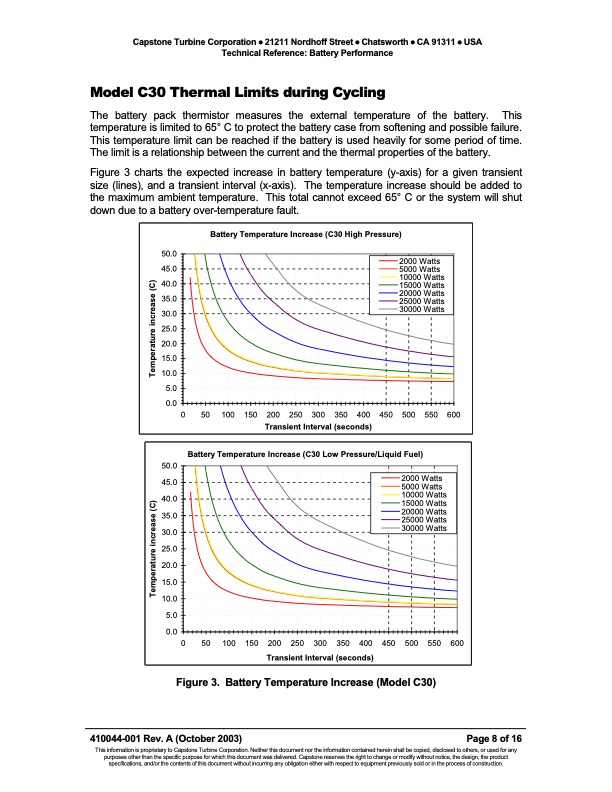

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Battery Performance Model C30 Thermal Limits during Cycling The battery pack thermistor measures the external temperature of the battery. This temperature is limited to 65° C to protect the battery case from softening and possible failure. This temperature limit can be reached if the battery is used heavily for some period of time. The limit is a relationship between the current and the thermal properties of the battery. Figure 3 charts the expected increase in battery temperature (y-axis) for a given transient size (lines), and a transient interval (x-axis). The temperature increase should be added to the maximum ambient temperature. This total cannot exceed 65° C or the system will shut down due to a battery over-temperature fault. 50.0 Battery Temperature Increase (C30 High Pressure) 2000 Watts 45.0 5000 Watts 40.0 35.0 30.0 25.0 20.0 15.0 10.0 5.0 10000 Watts 15000 Watts 20000 Watts 25000 Watts 30000 Watts 0.0 0 50 100 150 200 250 300 350 400 450 500 550 600 Transient Interval (seconds) 50.0 45.0 40.0 35.0 30.0 25.0 20.0 15.0 10.0 5.0 Battery Temperature Increase (C30 Low Pressure/Liquid Fuel) 2000 Watts 5000 Watts 10000 Watts 15000 Watts 20000 Watts 25000 Watts 30000 Watts 0.0 0 50 100 150 200 250 300 350 400 450 500 550 600 Transient Interval (seconds) Figure 3. Battery Temperature Increase (Model C30) 410044-001 Rev. A (October 2003) Page 8 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Temperature increase (C) Temperature increase (C)PDF Image | Technical Reference Battery Performance
