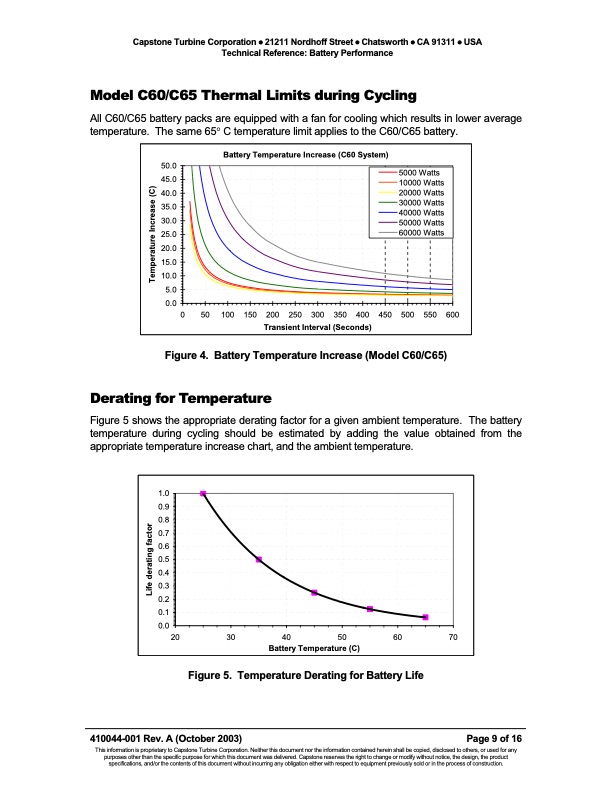

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Battery Performance Model C60/C65 Thermal Limits during Cycling All C60/C65 battery packs are equipped with a fan for cooling which results in lower average temperature. The same 65° C temperature limit applies to the C60/C65 battery. 50.0 45.0 5000 Watts 10000 Watts Battery Temperature Increase (C60 System) 40.0 20000 Watts 35.0 30.0 25.0 20.0 15.0 10.0 5.0 30000 Watts 40000 Watts 50000 Watts 60000 Watts 0.0 0 50 100 150 200 250 300 350 400 450 500 550 600 Transient Interval (Seconds) Figure 4. Battery Temperature Increase (Model C60/C65) Derating for Temperature Figure 5 shows the appropriate derating factor for a given ambient temperature. The battery temperature during cycling should be estimated by adding the value obtained from the appropriate temperature increase chart, and the ambient temperature. 1.0 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0.0 20 30 40 50 60 70 Battery Temperature (C) Figure 5. Temperature Derating for Battery Life 410044-001 Rev. A (October 2003) Page 9 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Life derating factor Temperature Increase (C)PDF Image | Technical Reference Battery Performance
