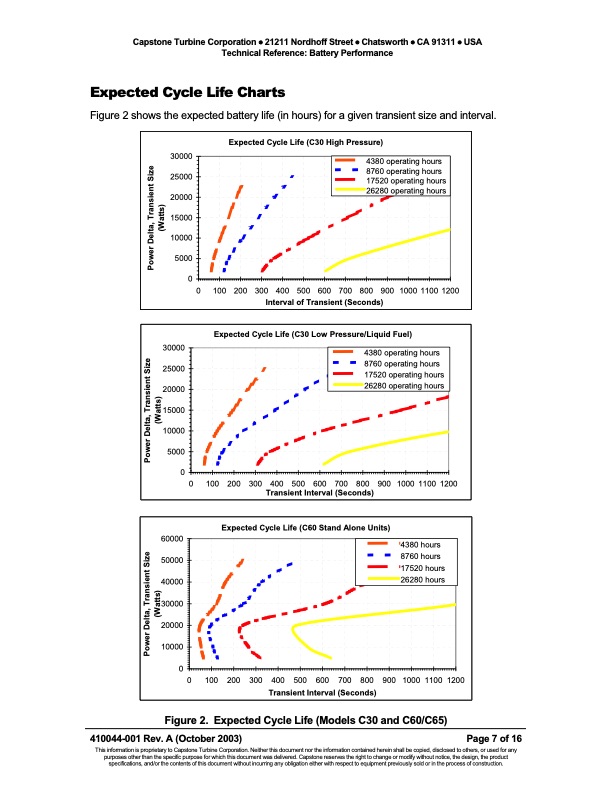

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Battery Performance Expected Cycle Life Charts Figure 2 shows the expected battery life (in hours) for a given transient size and interval. 30000 25000 20000 15000 10000 5000 Expected Cycle Life (C30 High Pressure) 4380 operating hours 8760 operating hours 17520 operating hours 26280 operating hours 0 0 100 200 300 400 500 600 700 800 900 1000 1100 1200 Interval of Transient (Seconds) 30000 25000 20000 15000 10000 5000 0 Expected Cycle Life (C30 Low Pressure/Liquid Fuel) 4380 operating hours 8760 operating hours 17520 operating hours 26280 operating hours 0 100 200 300 400 500 600 700 800 900 1000 1100 1200 Transient Interval (Seconds) 60000 50000 40000 30000 20000 10000 4380 hours 8760 hours 17520 hours 26280 hours Expected Cycle Life (C60 Stand Alone Units) 0 0 100 200 300 400 500 600 700 800 900 1000 1100 1200 Transient Interval (Seconds) Figure 2. Expected Cycle Life (Models C30 and C60/C65) 410044-001 Rev. A (October 2003) Page 7 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Power Delta, Transient Size Power Delta, Transient Size (Watts) (Watts) Power Delta, Transient Size (Watts)PDF Image | Technical Reference Battery Performance
