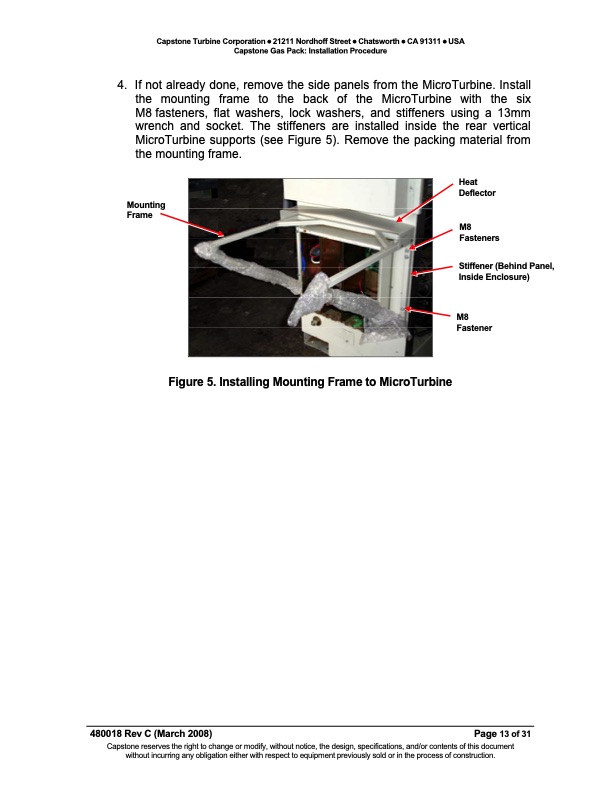

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Gas Pack: Installation Procedure 4. If not already done, remove the side panels from the MicroTurbine. Install the mounting frame to the back of the MicroTurbine with the six M8 fasteners, flat washers, lock washers, and stiffeners using a 13mm wrench and socket. The stiffeners are installed inside the rear vertical MicroTurbine supports (see Figure 5). Remove the packing material from the mounting frame. Mounting Frame Heat Deflector M8 Fasteners Stiffener (Behind Panel, Inside Enclosure) M8 Fastener Figure 5. Installing Mounting Frame to MicroTurbine 480018 Rev C (March 2008) Page 13 of 31 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | CAPSTONE GAS PACK INSTALLATION PROCEDURE
