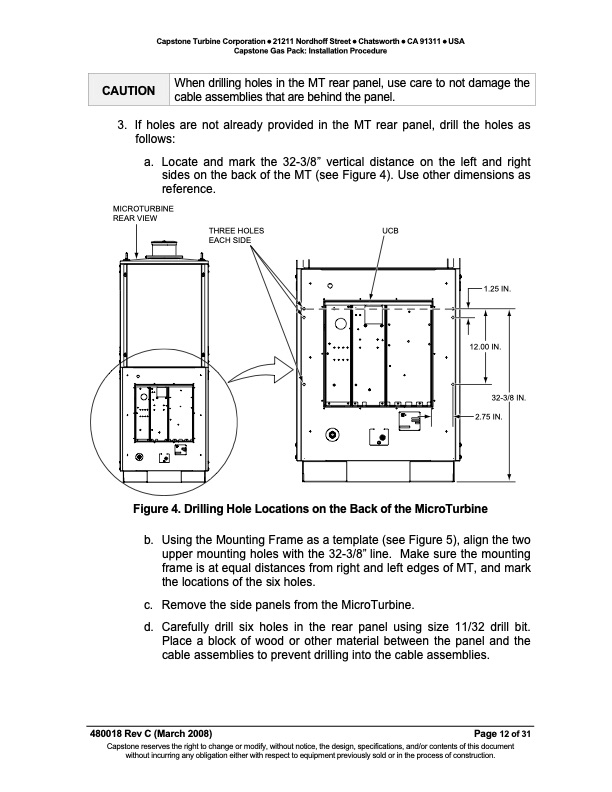

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Capstone Gas Pack: Installation Procedure CAUTION MICROTURBINE REAR VIEW When drilling holes in the MT rear panel, use care to not damage the cable assemblies that are behind the panel. 3. If holes are not already provided in the MT rear panel, drill the holes as follows: a. Locate and mark the 32-3/8” vertical distance on the left and right sides on the back of the MT (see Figure 4). Use other dimensions as reference. THREE HOLES UCB EACH SIDE Figure 4. Drilling Hole Locations on the Back of the MicroTurbine b. UsingtheMountingFrameasatemplate(seeFigure5),alignthetwo upper mounting holes with the 32-3/8” line. Make sure the mounting frame is at equal distances from right and left edges of MT, and mark the locations of the six holes. c. Remove the side panels from the MicroTurbine. d. Carefully drill six holes in the rear panel using size 11/32 drill bit. Place a block of wood or other material between the panel and the cable assemblies to prevent drilling into the cable assemblies. 480018 Rev C (March 2008) Page 12 of 31 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. 1.25 IN. 12.00 IN. 32-3/8 IN. 2.75 IN.PDF Image | CAPSTONE GAS PACK INSTALLATION PROCEDURE
