PDF Publication Title:
Text from PDF Page: 007

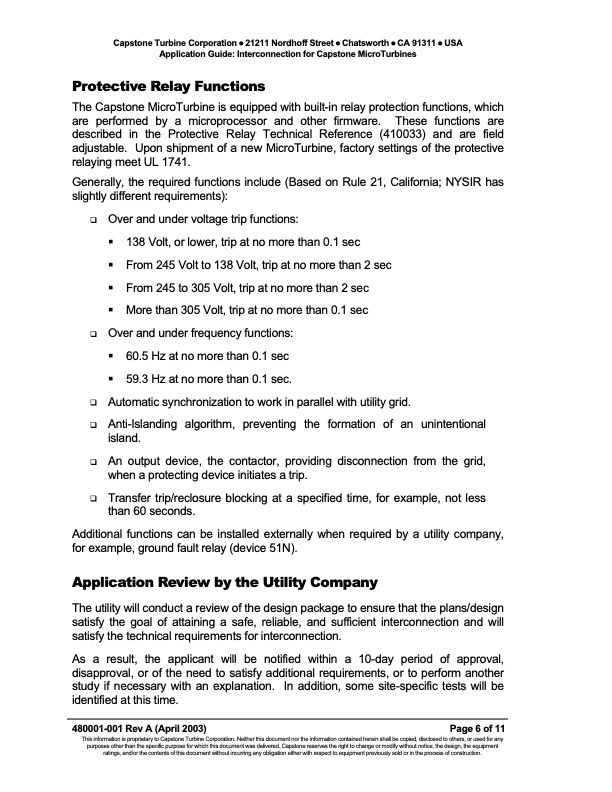

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Interconnection for Capstone MicroTurbines Protective Relay Functions The Capstone MicroTurbine is equipped with built-in relay protection functions, which are performed by a microprocessor and other firmware. These functions are described in the Protective Relay Technical Reference (410033) and are field adjustable. Upon shipment of a new MicroTurbine, factory settings of the protective relaying meet UL 1741. Generally, the required functions include (Based on Rule 21, California; NYSIR has slightly different requirements): Overandundervoltagetripfunctions: 138 Volt, or lower, trip at no more than 0.1 sec From 245 Volt to 138 Volt, trip at no more than 2 sec From 245 to 305 Volt, trip at no more than 2 sec More than 305 Volt, trip at no more than 0.1 sec Overandunderfrequencyfunctions: 60.5 Hz at no more than 0.1 sec 59.3 Hz at no more than 0.1 sec. Automaticsynchronizationtoworkinparallelwithutilitygrid. Anti-Islanding algorithm, preventing the formation of an unintentional island. An output device, the contactor, providing disconnection from the grid, when a protecting device initiates a trip. Transfer trip/reclosure blocking at a specified time, for example, not less than 60 seconds. Additional functions can be installed externally when required by a utility company, for example, ground fault relay (device 51N). Application Review by the Utility Company The utility will conduct a review of the design package to ensure that the plans/design satisfy the goal of attaining a safe, reliable, and sufficient interconnection and will satisfy the technical requirements for interconnection. As a result, the applicant will be notified within a 10-day period of approval, disapproval, or of the need to satisfy additional requirements, or to perform another study if necessary with an explanation. In addition, some site-specific tests will be identified at this time. 480001-001 Rev A (April 2003) Page 6 of 11 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Interconnection for Capstone MicroTurbines
