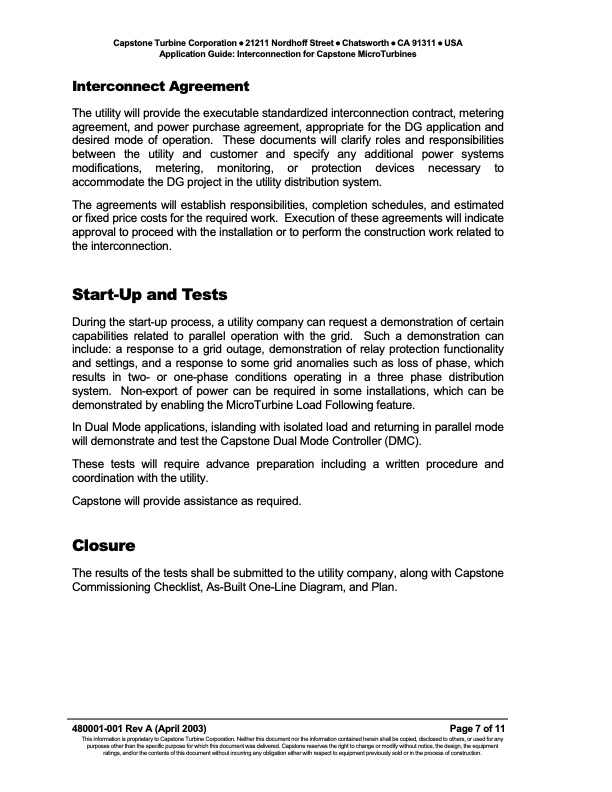

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Interconnection for Capstone MicroTurbines Interconnect Agreement The utility will provide the executable standardized interconnection contract, metering agreement, and power purchase agreement, appropriate for the DG application and desired mode of operation. These documents will clarify roles and responsibilities between the utility and customer and specify any additional power systems modifications, metering, monitoring, or protection devices necessary to accommodate the DG project in the utility distribution system. The agreements will establish responsibilities, completion schedules, and estimated or fixed price costs for the required work. Execution of these agreements will indicate approval to proceed with the installation or to perform the construction work related to the interconnection. Start-Up and Tests During the start-up process, a utility company can request a demonstration of certain capabilities related to parallel operation with the grid. Such a demonstration can include: a response to a grid outage, demonstration of relay protection functionality and settings, and a response to some grid anomalies such as loss of phase, which results in two- or one-phase conditions operating in a three phase distribution system. Non-export of power can be required in some installations, which can be demonstrated by enabling the MicroTurbine Load Following feature. In Dual Mode applications, islanding with isolated load and returning in parallel mode will demonstrate and test the Capstone Dual Mode Controller (DMC). These tests will require advance preparation including a written procedure and coordination with the utility. Capstone will provide assistance as required. Closure The results of the tests shall be submitted to the utility company, along with Capstone Commissioning Checklist, As-Built One-Line Diagram, and Plan. 480001-001 Rev A (April 2003) Page 7 of 11 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Interconnection for Capstone MicroTurbines
