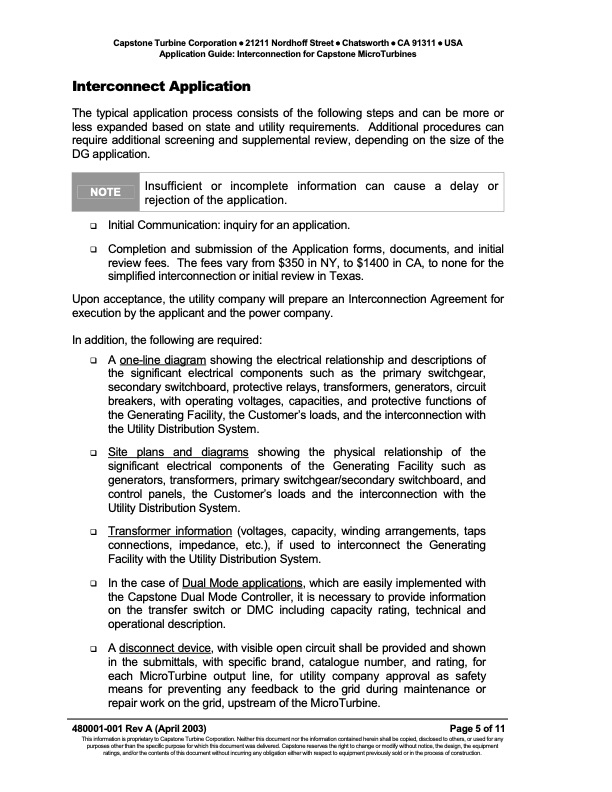

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Interconnection for Capstone MicroTurbines Interconnect Application The typical application process consists of the following steps and can be more or less expanded based on state and utility requirements. Additional procedures can require additional screening and supplemental review, depending on the size of the DG application. Insufficient or incomplete information can cause a delay or rejection of the application. InitialCommunication:inquiryforanapplication. Completion and submission of the Application forms, documents, and initial review fees. The fees vary from $350 in NY, to $1400 in CA, to none for the simplified interconnection or initial review in Texas. Upon acceptance, the utility company will prepare an Interconnection Agreement for execution by the applicant and the power company. In addition, the following are required: A one-line diagram showing the electrical relationship and descriptions of the significant electrical components such as the primary switchgear, secondary switchboard, protective relays, transformers, generators, circuit breakers, with operating voltages, capacities, and protective functions of the Generating Facility, the Customer’s loads, and the interconnection with the Utility Distribution System. Site plans and diagrams showing the physical relationship of the significant electrical components of the Generating Facility such as generators, transformers, primary switchgear/secondary switchboard, and control panels, the Customer’s loads and the interconnection with the Utility Distribution System. Transformer information (voltages, capacity, winding arrangements, taps connections, impedance, etc.), if used to interconnect the Generating Facility with the Utility Distribution System. In the case of Dual Mode applications, which are easily implemented with the Capstone Dual Mode Controller, it is necessary to provide information on the transfer switch or DMC including capacity rating, technical and operational description. A disconnect device, with visible open circuit shall be provided and shown in the submittals, with specific brand, catalogue number, and rating, for each MicroTurbine output line, for utility company approval as safety means for preventing any feedback to the grid during maintenance or repair work on the grid, upstream of the MicroTurbine. 480001-001 Rev A (April 2003) Page 5 of 11 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. NOTEPDF Image | Application Guide Interconnection for Capstone MicroTurbines
