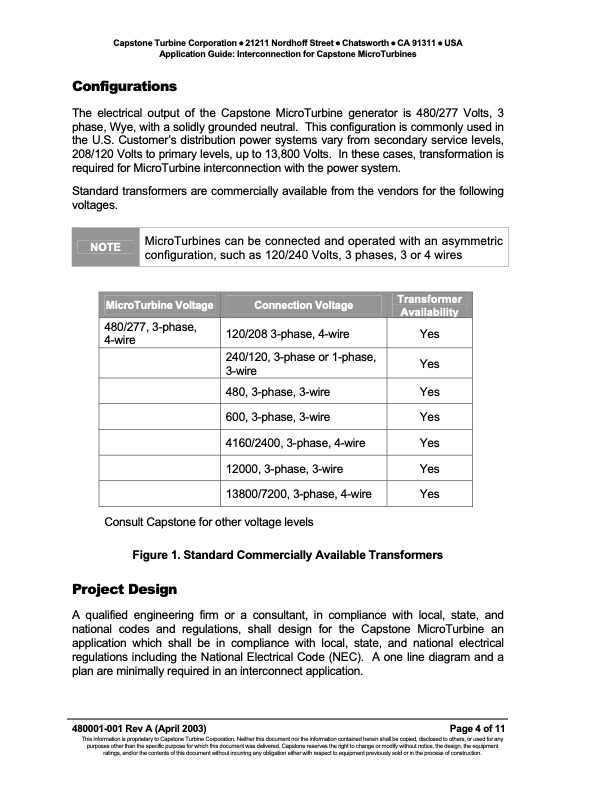

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Application Guide: Interconnection for Capstone MicroTurbines Configurations The electrical output of the Capstone MicroTurbine generator is 480/277 Volts, 3 phase, Wye, with a solidly grounded neutral. This configuration is commonly used in the U.S. Customer’s distribution power systems vary from secondary service levels, 208/120 Volts to primary levels, up to 13,800 Volts. In these cases, transformation is required for MicroTurbine interconnection with the power system. Standard transformers are commercially available from the vendors for the following voltages. MicroTurbines can be connected and operated with an asymmetric configuration, such as 120/240 Volts, 3 phases, 3 or 4 wires NOTE MicroTurbine Voltage Connection Voltage Transformer Availability 480/277, 3-phase, 4-wire 120/208 3-phase, 4-wire Yes 240/120, 3-phase or 1-phase, 3-wire Yes 480, 3-phase, 3-wire Yes 600, 3-phase, 3-wire Yes 4160/2400, 3-phase, 4-wire Yes 12000, 3-phase, 3-wire Yes 13800/7200, 3-phase, 4-wire Yes Consult Capstone for other voltage levels Figure 1. Standard Commercially Available Transformers Project Design A qualified engineering firm or a consultant, in compliance with local, state, and national codes and regulations, shall design for the Capstone MicroTurbine an application which shall be in compliance with local, state, and national electrical regulations including the National Electrical Code (NEC). A one line diagram and a plan are minimally required in an interconnect application. 480001-001 Rev A (April 2003) Page 4 of 11 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment ratings, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Application Guide Interconnection for Capstone MicroTurbines
