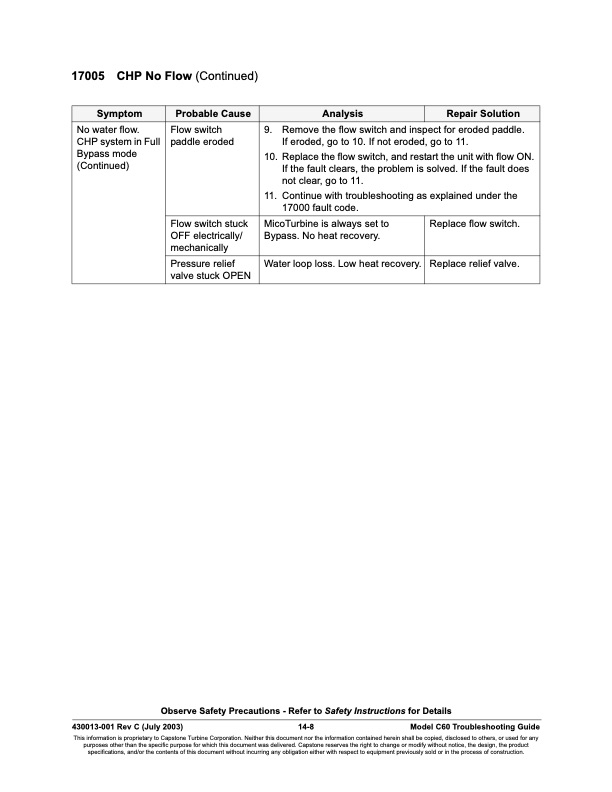

17005 CHP No Flow (Continued) Symptom Probable Cause Analysis Repair Solution No water flow. CHP system in Full Bypass mode (Continued) Flow switch paddle eroded 9. Remove the flow switch and inspect for eroded paddle. If eroded, go to 10. If not eroded, go to 11. 10. Replace the flow switch, and restart the unit with flow ON. If the fault clears, the problem is solved. If the fault does not clear, go to 11. 11. Continue with troubleshooting as explained under the 17000 fault code. Flow switch stuck OFF electrically/ mechanically MicoTurbine is always set to Bypass. No heat recovery. Replace flow switch. Pressure relief valve stuck OPEN Water loop loss. Low heat recovery. Replace relief valve. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 14-8 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 17000 FAULT CODES Integrated CHP Faults
