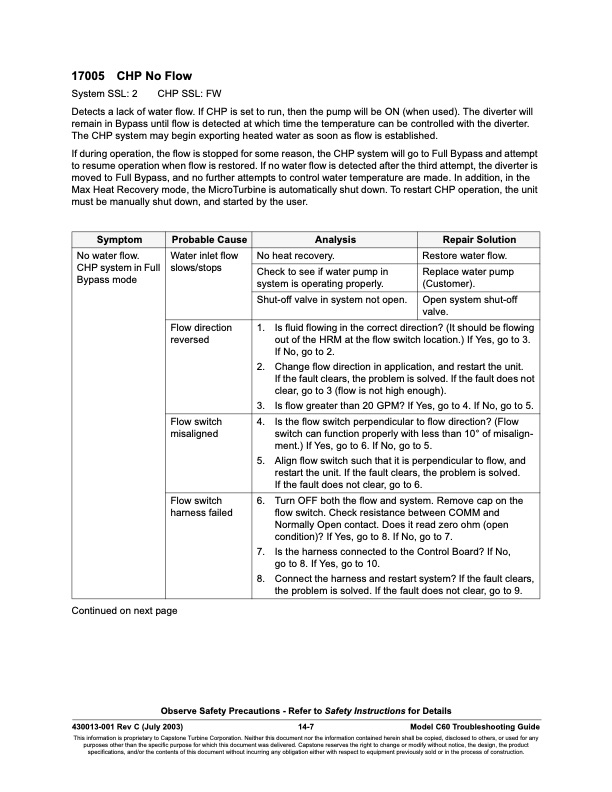

17005 CHP No Flow System SSL: 2 CHP SSL: FW Detects a lack of water flow. If CHP is set to run, then the pump will be ON (when used). The diverter will remain in Bypass until flow is detected at which time the temperature can be controlled with the diverter. The CHP system may begin exporting heated water as soon as flow is established. If during operation, the flow is stopped for some reason, the CHP system will go to Full Bypass and attempt to resume operation when flow is restored. If no water flow is detected after the third attempt, the diverter is moved to Full Bypass, and no further attempts to control water temperature are made. In addition, in the Max Heat Recovery mode, the MicroTurbine is automatically shut down. To restart CHP operation, the unit must be manually shut down, and started by the user. Symptom Probable Cause Analysis Repair Solution No water flow. CHP system in Full Bypass mode Water inlet flow slows/stops No heat recovery. Restore water flow. Check to see if water pump in system is operating properly. Replace water pump (Customer). Shut-off valve in system not open. Open system shut-off valve. Flow direction reversed 1. Is fluid flowing in the correct direction? (It should be flowing out of the HRM at the flow switch location.) If Yes, go to 3. If No, go to 2. 2. Change flow direction in application, and restart the unit. If the fault clears, the problem is solved. If the fault does not clear, go to 3 (flow is not high enough). 3. Isflowgreaterthan20GPM?IfYes,goto4.IfNo,goto5. Flow switch misaligned 4. Is the flow switch perpendicular to flow direction? (Flow switch can function properly with less than 10° of misalign- ment.) If Yes, go to 6. If No, go to 5. 5. Align flow switch such that it is perpendicular to flow, and restart the unit. If the fault clears, the problem is solved. If the fault does not clear, go to 6. Flow switch harness failed 6. Turn OFF both the flow and system. Remove cap on the flow switch. Check resistance between COMM and Normally Open contact. Does it read zero ohm (open condition)? If Yes, go to 8. If No, go to 7. 7. Is the harness connected to the Control Board? If No, go to 8. If Yes, go to 10. 8. Connect the harness and restart system? If the fault clears, the problem is solved. If the fault does not clear, go to 9. Continued on next page Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 14-7 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 17000 FAULT CODES Integrated CHP Faults
