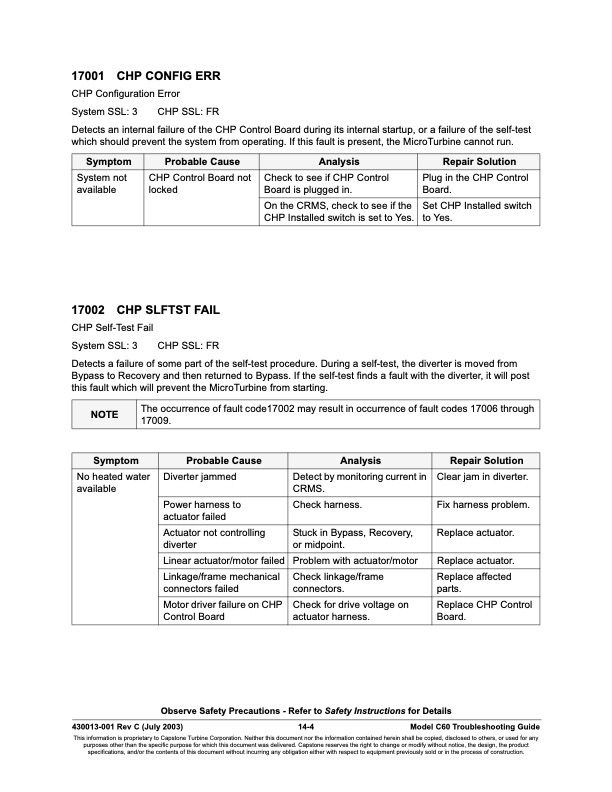

17001 CHP CONFIG ERR CHP Configuration Error System SSL: 3 CHP SSL: FR Detects an internal failure of the CHP Control Board during its internal startup, or a failure of the self-test which should prevent the system from operating. If this fault is present, the MicroTurbine cannot run. Symptom Probable Cause Analysis Repair Solution System not available CHP Control Board not locked Check to see if CHP Control Board is plugged in. Plug in the CHP Control Board. On the CRMS, check to see if the CHP Installed switch is set to Yes. Set CHP Installed switch to Yes. 17002 CHP SLFTST FAIL CHP Self-Test Fail System SSL: 3 CHP SSL: FR Detects a failure of some part of the self-test procedure. During a self-test, the diverter is moved from Bypass to Recovery and then returned to Bypass. If the self-test finds a fault with the diverter, it will post this fault which will prevent the MicroTurbine from starting. NOTE The occurrence of fault code17002 may result in occurrence of fault codes 17006 through 17009. Symptom Probable Cause Analysis Repair Solution No heated water available Diverter jammed Detect by monitoring current in CRMS. Clear jam in diverter. Power harness to actuator failed Check harness. Fix harness problem. Actuator not controlling diverter Stuck in Bypass, Recovery, or midpoint. Replace actuator. Linear actuator/motor failed Problem with actuator/motor Replace actuator. Linkage/frame mechanical connectors failed Check linkage/frame connectors. Replace affected parts. Motor driver failure on CHP Control Board Check for drive voltage on actuator harness. Replace CHP Control Board. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 14-4 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 17000 FAULT CODES Integrated CHP Faults
