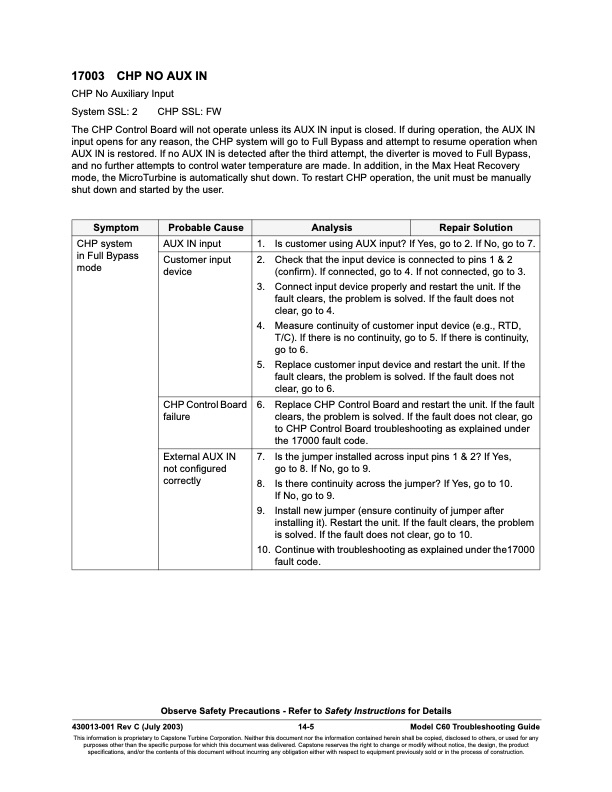

17003 CHP NO AUX IN CHP No Auxiliary Input System SSL: 2 CHP SSL: FW The CHP Control Board will not operate unless its AUX IN input is closed. If during operation, the AUX IN input opens for any reason, the CHP system will go to Full Bypass and attempt to resume operation when AUX IN is restored. If no AUX IN is detected after the third attempt, the diverter is moved to Full Bypass, and no further attempts to control water temperature are made. In addition, in the Max Heat Recovery mode, the MicroTurbine is automatically shut down. To restart CHP operation, the unit must be manually shut down and started by the user. Symptom Probable Cause Analysis Repair Solution CHP system in Full Bypass mode AUX IN input 1. Is customer using AUX input? If Yes, go to 2. If No, go to 7. Customer input device 2. Check that the input device is connected to pins 1 & 2 (confirm). If connected, go to 4. If not connected, go to 3. 3. Connect input device properly and restart the unit. If the fault clears, the problem is solved. If the fault does not clear, go to 4. 4. Measure continuity of customer input device (e.g., RTD, T/C). If there is no continuity, go to 5. If there is continuity, go to 6. 5. Replace customer input device and restart the unit. If the fault clears, the problem is solved. If the fault does not clear, go to 6. CHP Control Board failure 6. Replace CHP Control Board and restart the unit. If the fault clears, the problem is solved. If the fault does not clear, go to CHP Control Board troubleshooting as explained under the 17000 fault code. External AUX IN not configured correctly 7. Is the jumper installed across input pins 1 & 2? If Yes, go to 8. If No, go to 9. 8. Is there continuity across the jumper? If Yes, go to 10. If No, go to 9. 9. Install new jumper (ensure continuity of jumper after installing it). Restart the unit. If the fault clears, the problem is solved. If the fault does not clear, go to 10. 10. Continue with troubleshooting as explained under the17000 fault code. Observe Safety Precautions - Refer to Safety Instructions for Details 430013-001 Rev C (July 2003) 14-5 Model C60 Troubleshooting Guide This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Overview SERIES 17000 FAULT CODES Integrated CHP Faults
