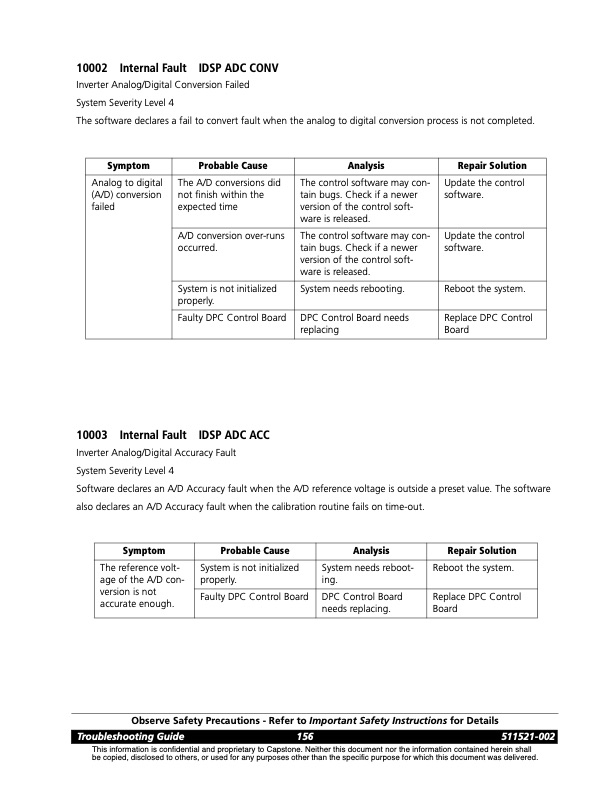

10002 Internal Fault IDSP ADC CONV Inverter Analog/Digital Conversion Failed System Severity Level 4 The software declares a fail to convert fault when the analog to digital conversion process is not completed. Symptom Probable Cause Analysis Repair Solution Analog to digital (A/D) conversion failed The A/D conversions did not finish within the expected time The control software may con- tain bugs. Check if a newer version of the control soft- ware is released. Update the control software. A/D conversion over-runs occurred. The control software may con- tain bugs. Check if a newer version of the control soft- ware is released. Update the control software. System is not initialized properly. System needs rebooting. Reboot the system. Faulty DPC Control Board DPC Control Board needs replacing Replace DPC Control Board 10003 Internal Fault IDSP ADC ACC Inverter Analog/Digital Accuracy Fault System Severity Level 4 Software declares an A/D Accuracy fault when the A/D reference voltage is outside a preset value. The software also declares an A/D Accuracy fault when the calibration routine fails on time-out. Symptom Probable Cause Analysis Repair Solution The reference volt- age of the A/D con- version is not accurate enough. System is not initialized properly. System needs reboot- ing. Reboot the system. Faulty DPC Control Board DPC Control Board needs replacing. Replace DPC Control Board Observe Safety Precautions - Refer to Important Safety Instructions for Details Troubleshooting Guide 156 511521-002 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
