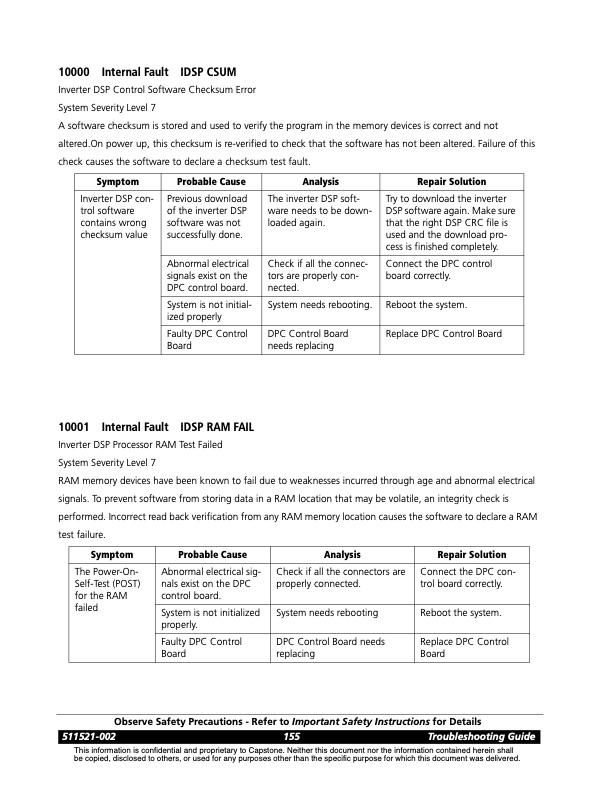

10000 Internal Fault IDSP CSUM Inverter DSP Control Software Checksum Error System Severity Level 7 A software checksum is stored and used to verify the program in the memory devices is correct and not altered.On power up, this checksum is re-verified to check that the software has not been altered. Failure of this check causes the software to declare a checksum test fault. Symptom Probable Cause Analysis Repair Solution Inverter DSP con- trol software contains wrong checksum value Previous download of the inverter DSP software was not successfully done. The inverter DSP soft- ware needs to be down- loaded again. Try to download the inverter DSP software again. Make sure that the right DSP CRC file is used and the download pro- cess is finished completely. Abnormal electrical signals exist on the DPC control board. Check if all the connec- tors are properly con- nected. Connect the DPC control board correctly. System is not initial- ized properly System needs rebooting. Reboot the system. Faulty DPC Control Board DPC Control Board needs replacing Replace DPC Control Board 10001 Internal Fault IDSP RAM FAIL Inverter DSP Processor RAM Test Failed System Severity Level 7 RAM memory devices have been known to fail due to weaknesses incurred through age and abnormal electrical signals. To prevent software from storing data in a RAM location that may be volatile, an integrity check is performed. Incorrect read back verification from any RAM memory location causes the software to declare a RAM test failure. Symptom Probable Cause Analysis Repair Solution The Power-On- Self-Test (POST) for the RAM failed Abnormal electrical sig- nals exist on the DPC control board. Check if all the connectors are properly connected. Connect the DPC con- trol board correctly. System is not initialized properly. System needs rebooting Reboot the system. Faulty DPC Control Board DPC Control Board needs replacing Replace DPC Control Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 511521-002 155 Troubleshooting Guide This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
