Text from PDF Page: 005

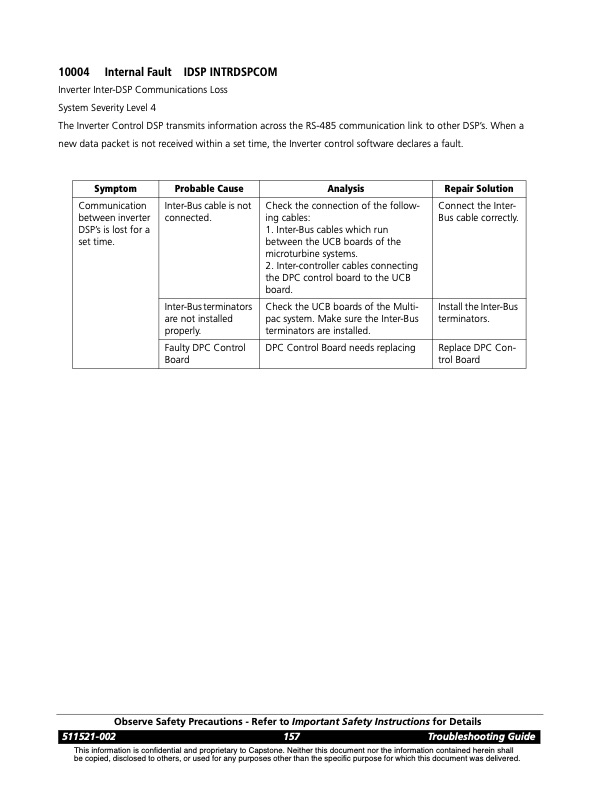

10004 Internal Fault IDSP INTRDSPCOM Inverter Inter-DSP Communications Loss System Severity Level 4 The Inverter Control DSP transmits information across the RS-485 communication link to other DSP’s. When a new data packet is not received within a set time, the Inverter control software declares a fault. Symptom Probable Cause Analysis Repair Solution Communication between inverter DSP’s is lost for a set time. Inter-Bus cable is not connected. Check the connection of the follow- ing cables: 1. Inter-Bus cables which run between the UCB boards of the microturbine systems. 2. Inter-controller cables connecting the DPC control board to the UCB board. Connect the Inter- Bus cable correctly. Inter-Bus terminators are not installed properly. Check the UCB boards of the Multi- pac system. Make sure the Inter-Bus terminators are installed. Install the Inter-Bus terminators. Faulty DPC Control Board DPC Control Board needs replacing Replace DPC Con- trol Board Observe Safety Precautions - Refer to Important Safety Instructions for Details 511521-002 157 Troubleshooting Guide This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Overview SERIES 10000 FAULT CODES Inverter Faults
