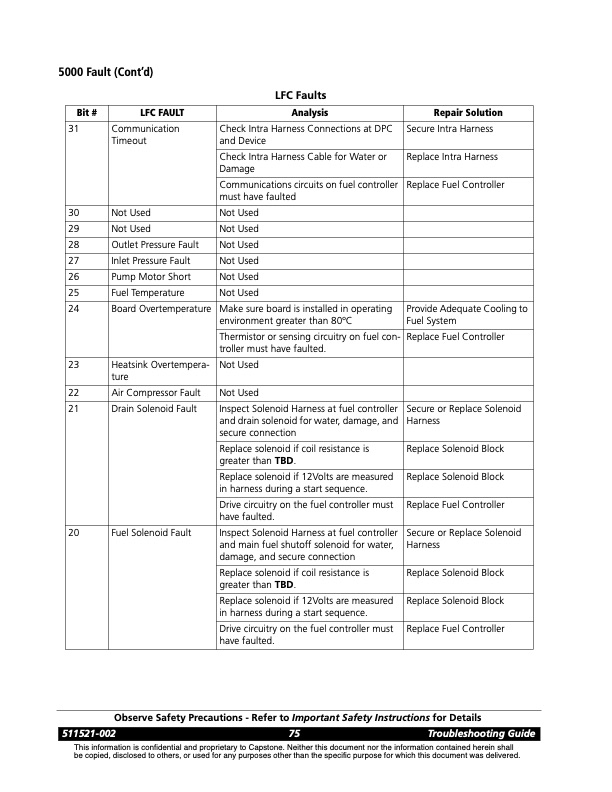

5000 Fault (Cont’d) LFC Faults Bit # LFC FAULT Analysis Repair Solution 31 Communication Timeout Check Intra Harness Connections at DPC and Device Secure Intra Harness Check Intra Harness Cable for Water or Damage Replace Intra Harness Communications circuits on fuel controller must have faulted Replace Fuel Controller 30 Not Used Not Used 29 Not Used Not Used 28 Outlet Pressure Fault Not Used 27 Inlet Pressure Fault Not Used 26 Pump Motor Short Not Used 25 Fuel Temperature Not Used 24 Board Overtemperature Make sure board is installed in operating environment greater than 80oC Provide Adequate Cooling to Fuel System Thermistor or sensing circuitry on fuel con- troller must have faulted. Replace Fuel Controller 23 Heatsink Overtempera- ture Not Used 22 Air Compressor Fault Not Used 21 Drain Solenoid Fault Inspect Solenoid Harness at fuel controller and drain solenoid for water, damage, and secure connection Secure or Replace Solenoid Harness Replace solenoid if coil resistance is greater than TBD. Replace Solenoid Block Replace solenoid if 12Volts are measured in harness during a start sequence. Replace Solenoid Block Drive circuitry on the fuel controller must have faulted. Replace Fuel Controller 20 Fuel Solenoid Fault Inspect Solenoid Harness at fuel controller and main fuel shutoff solenoid for water, damage, and secure connection Secure or Replace Solenoid Harness Replace solenoid if coil resistance is greater than TBD. Replace Solenoid Block Replace solenoid if 12Volts are measured in harness during a start sequence. Replace Solenoid Block Drive circuitry on the fuel controller must have faulted. Replace Fuel Controller Observe Safety Precautions - Refer to Important Safety Instructions for Details 511521-002 75 Troubleshooting Guide This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Capstone SERIES 5000 FAULT CODES
