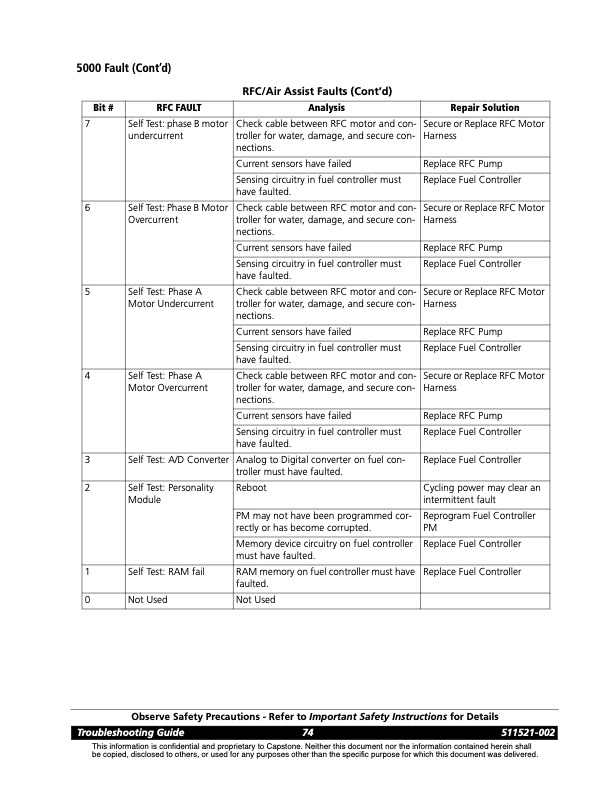

5000 Fault (Cont’d) RFC/Air Assist Faults (Cont’d) Bit # RFC FAULT Analysis Repair Solution 7 Self Test: phase B motor undercurrent Check cable between RFC motor and con- troller for water, damage, and secure con- nections. Secure or Replace RFC Motor Harness Current sensors have failed Replace RFC Pump Sensing circuitry in fuel controller must have faulted. Replace Fuel Controller 6 Self Test: Phase B Motor Overcurrent Check cable between RFC motor and con- troller for water, damage, and secure con- nections. Secure or Replace RFC Motor Harness Current sensors have failed Replace RFC Pump Sensing circuitry in fuel controller must have faulted. Replace Fuel Controller 5 Self Test: Phase A Motor Undercurrent Check cable between RFC motor and con- troller for water, damage, and secure con- nections. Secure or Replace RFC Motor Harness Current sensors have failed Replace RFC Pump Sensing circuitry in fuel controller must have faulted. Replace Fuel Controller 4 Self Test: Phase A Motor Overcurrent Check cable between RFC motor and con- troller for water, damage, and secure con- nections. Secure or Replace RFC Motor Harness Current sensors have failed Replace RFC Pump Sensing circuitry in fuel controller must have faulted. Replace Fuel Controller 3 Self Test: A/D Converter Analog to Digital converter on fuel con- troller must have faulted. Replace Fuel Controller 2 Self Test: Personality Module Reboot Cycling power may clear an intermittent fault PM may not have been programmed cor- rectly or has become corrupted. Reprogram Fuel Controller PM Memory device circuitry on fuel controller must have faulted. Replace Fuel Controller 1 Self Test: RAM fail RAM memory on fuel controller must have faulted. Replace Fuel Controller 0 Not Used Not Used Observe Safety Precautions - Refer to Important Safety Instructions for Details Troubleshooting Guide 74 511521-002 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Capstone SERIES 5000 FAULT CODES
