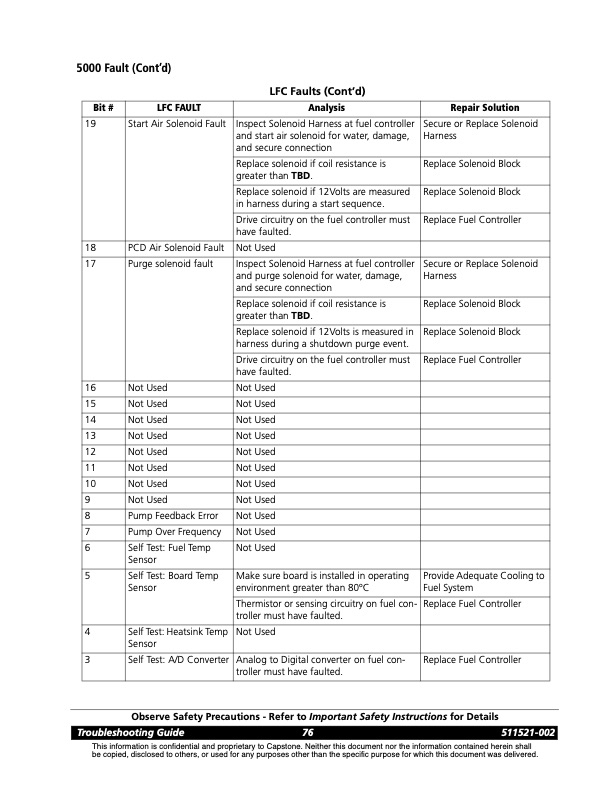

5000 Fault (Cont’d) LFC Faults (Cont’d) Bit # LFC FAULT Analysis Repair Solution 19 Start Air Solenoid Fault Inspect Solenoid Harness at fuel controller and start air solenoid for water, damage, and secure connection Secure or Replace Solenoid Harness Replace solenoid if coil resistance is greater than TBD. Replace Solenoid Block Replace solenoid if 12Volts are measured in harness during a start sequence. Replace Solenoid Block Drive circuitry on the fuel controller must have faulted. Replace Fuel Controller 18 PCD Air Solenoid Fault Not Used 17 Purge solenoid fault Inspect Solenoid Harness at fuel controller and purge solenoid for water, damage, and secure connection Secure or Replace Solenoid Harness Replace solenoid if coil resistance is greater than TBD. Replace Solenoid Block Replace solenoid if 12Volts is measured in harness during a shutdown purge event. Replace Solenoid Block Drive circuitry on the fuel controller must have faulted. Replace Fuel Controller 16 Not Used Not Used 15 Not Used Not Used 14 Not Used Not Used 13 Not Used Not Used 12 Not Used Not Used 11 Not Used Not Used 10 Not Used Not Used 9 Not Used Not Used 8 Pump Feedback Error Not Used 7 Pump Over Frequency Not Used 6 Self Test: Fuel Temp Sensor Not Used 5 Self Test: Board Temp Sensor Make sure board is installed in operating environment greater than 80oC Provide Adequate Cooling to Fuel System Thermistor or sensing circuitry on fuel con- troller must have faulted. Replace Fuel Controller 4 Self Test: Heatsink Temp Sensor Not Used 3 Self Test: A/D Converter Analog to Digital converter on fuel con- troller must have faulted. Replace Fuel Controller Observe Safety Precautions - Refer to Important Safety Instructions for Details Troubleshooting Guide 76 511521-002 This information is confidential and proprietary to Capstone. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered.PDF Image | Capstone SERIES 5000 FAULT CODES
