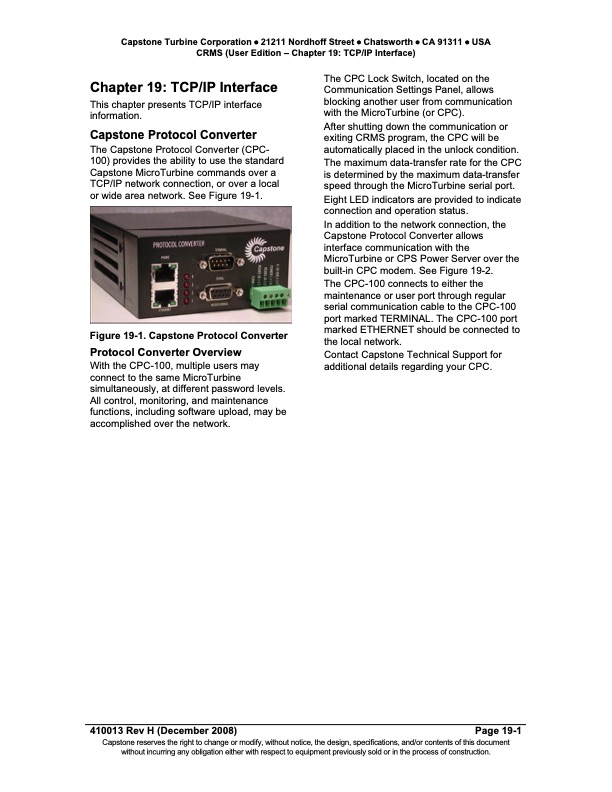

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 19: TCP/IP Interface) Chapter 19: TCP/IP Interface This chapter presents TCP/IP interface information. Capstone Protocol Converter The Capstone Protocol Converter (CPC- 100) provides the ability to use the standard Capstone MicroTurbine commands over a TCP/IP network connection, or over a local or wide area network. See Figure 19-1. The CPC Lock Switch, located on the Communication Settings Panel, allows blocking another user from communication with the MicroTurbine (or CPC). After shutting down the communication or exiting CRMS program, the CPC will be automatically placed in the unlock condition. The maximum data-transfer rate for the CPC is determined by the maximum data-transfer speed through the MicroTurbine serial port. Eight LED indicators are provided to indicate connection and operation status. In addition to the network connection, the Capstone Protocol Converter allows interface communication with the MicroTurbine or CPS Power Server over the built-in CPC modem. See Figure 19-2. The CPC-100 connects to either the maintenance or user port through regular serial communication cable to the CPC-100 port marked TERMINAL. The CPC-100 port marked ETHERNET should be connected to the local network. Contact Capstone Technical Support for additional details regarding your CPC. Figure 19-1. Capstone Protocol Converter Protocol Converter Overview With the CPC-100, multiple users may connect to the same MicroTurbine simultaneously, at different password levels. All control, monitoring, and maintenance functions, including software upload, may be accomplished over the network. 410013 Rev H (December 2008) Page 19-1 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
