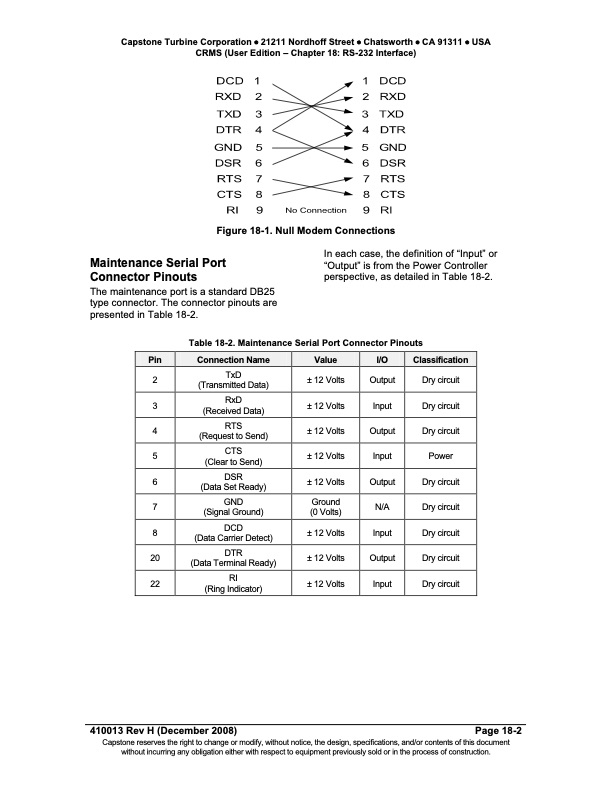

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 18: RS-232 Interface) Figure 18-1. Null Modem Connections Maintenance Serial Port Connector Pinouts The maintenance port is a standard DB25 type connector. The connector pinouts are presented in Table 18-2. In each case, the definition of “Input” or “Output” is from the Power Controller perspective, as detailed in Table 18-2. Table 18-2. Maintenance Serial Port Connector Pinouts Pin Connection Name Value I/O Classification 2 3 4 5 6 7 8 20 22 TxD (Transmitted Data) RxD (Received Data) RTS (Request to Send) CTS (Clear to Send) DSR (Data Set Ready) GND (Signal Ground) DCD (Data Carrier Detect) DTR (Data Terminal Ready) RI (Ring Indicator) ± 12 Volts ± 12 Volts ± 12 Volts ± 12 Volts ± 12 Volts Ground (0 Volts) ± 12 Volts ± 12 Volts ± 12 Volts Output Input Output Input Output N/A Input Output Input Dry circuit Dry circuit Dry circuit Power Dry circuit Dry circuit Dry circuit Dry circuit Dry circuit 410013 Rev H (December 2008) Page 18-2 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
