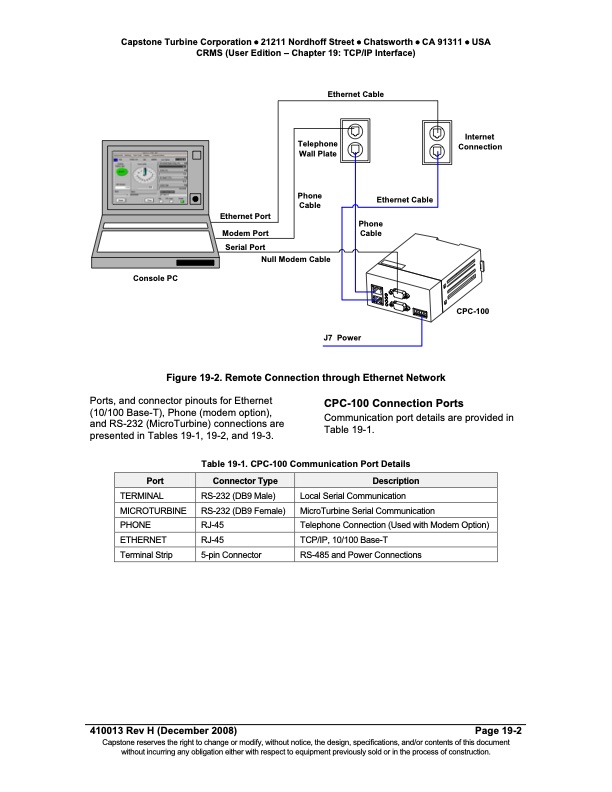

Capstone Turbine Corporation 21211 Nordhoff Street Chatsworth CA 91311 USA CRMS (User Edition – Chapter 19: TCP/IP Interface) Console PC Ethernet Cable Telephone Wall Plate Phone Cable Internet Connection Ethernet Port Modem Port Serial Port Ethernet Cable Phone Cable Null Modem Cable CPC-100 Figure 19-2. Remote Connection through Ethernet Network Ports, and connector pinouts for Ethernet (10/100 Base-T), Phone (modem option), and RS-232 (MicroTurbine) connections are presented in Tables 19-1, 19-2, and 19-3. CPC-100 Connection Ports Communication port details are provided in Table 19-1. Table 19-1. CPC-100 Communication Port Details J7 Power Port Connector Type Description TERMINAL MICROTURBINE PHONE ETHERNET Terminal Strip RS-232 (DB9 Male) RS-232 (DB9 Female) RJ-45 RJ-45 5-pin Connector Local Serial Communication MicroTurbine Serial Communication Telephone Connection (Used with Modem Option) TCP/IP, 10/100 Base-T RS-485 and Power Connections 410013 Rev H (December 2008) Page 19-2 Capstone reserves the right to change or modify, without notice, the design, specifications, and/or contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Capstone Remote Monitoring System (User Edition)
