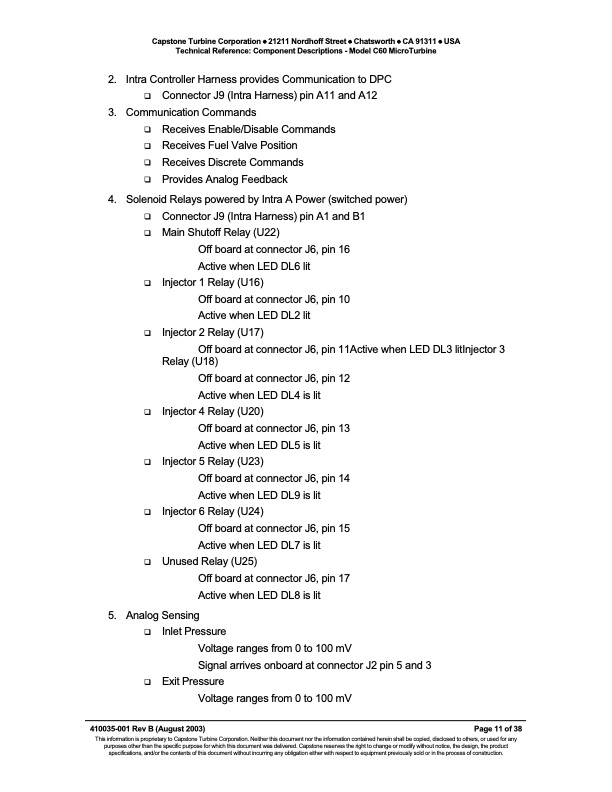

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model C60 MicroTurbine 2. Intra Controller Harness provides Communication to DPC ConnectorJ9(IntraHarness)pinA11andA12 3. Communication Commands ReceivesEnable/DisableCommands ReceivesFuelValvePosition ReceivesDiscreteCommands ProvidesAnalogFeedback 4. Solenoid Relays powered by Intra A Power (switched power) ConnectorJ9(IntraHarness)pinA1andB1 MainShutoffRelay(U22) Off board at connector J6, pin 16 Active when LED DL6 lit Injector1Relay(U16) Off board at connector J6, pin 10 Active when LED DL2 lit Injector2Relay(U17) Off board at connector J6, pin 11Active when LED DL3 litInjector 3 Relay (U18) Off board at connector J6, pin 12 Active when LED DL4 is lit Injector4Relay(U20) Off board at connector J6, pin 13 Active when LED DL5 is lit Injector5Relay(U23) Off board at connector J6, pin 14 Active when LED DL9 is lit Injector6Relay(U24) Off board at connector J6, pin 15 Active when LED DL7 is lit UnusedRelay(U25) Off board at connector J6, pin 17 Active when LED DL8 is lit 5. Analog InletPressure Voltage ranges from 0 to 100 mV Signal arrives onboard at connector J2 pin 5 and 3 ExitPressure Voltage ranges from 0 to 100 mV 410035-001 Rev B (August 2003) Sensing This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction. Page 11 of 38PDF Image | Technical Reference Component Descriptions Capstone Model C60 MicroTurbine
PDF Search Title:
Technical Reference Component Descriptions Capstone Model C60 MicroTurbineOriginal File Name Searched:
