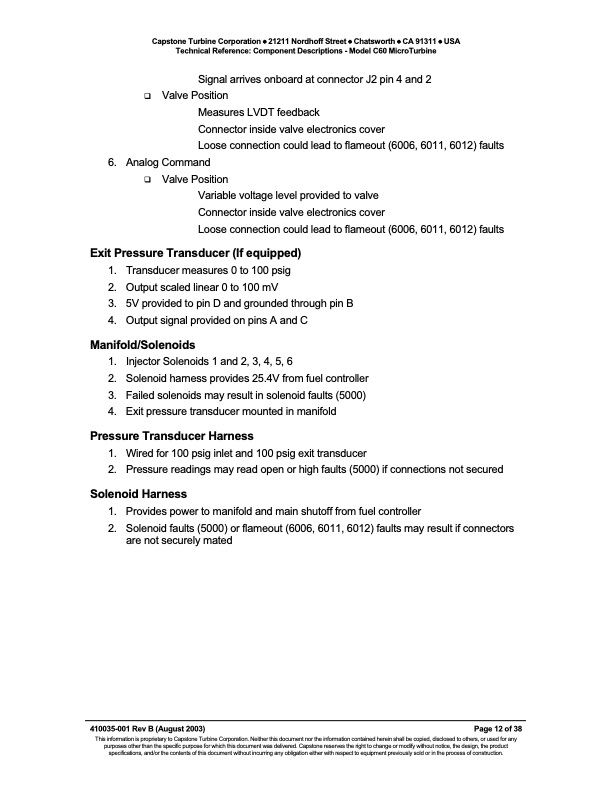

Text from PDF Page: 012
Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model C60 MicroTurbine Signal arrives onboard at connector J2 pin 4 and 2 ValvePosition Measures LVDT feedback Connector inside valve electronics cover Loose connection could lead to flameout (6006, 6011, 6012) faults 6. Analog Command ValvePosition Variable voltage level provided to valve Connector inside valve electronics cover Loose connection could lead to flameout (6006, 6011, 6012) faults Exit Pressure Transducer (If equipped) 1. Transducer measures 0 to 100 psig 2. Output scaled linear 0 to 100 mV 3. 5V provided to pin D and grounded through pin B 4. Output signal provided on pins A and C Manifold/Solenoids 1. Injector Solenoids 1 and 2, 3, 4, 5, 6 2. Solenoid harness provides 25.4V from fuel controller 3. Failed solenoids may result in solenoid faults (5000) 4. Exit pressure transducer mounted in manifold Pressure Transducer Harness 1. Wired for 100 psig inlet and 100 psig exit transducer 2. Pressure readings may read open or high faults (5000) if connections not secured Solenoid Harness 1. Provides power to manifold and main shutoff from fuel controller 2. Solenoid faults (5000) or flameout (6006, 6011, 6012) faults may result if connectors are not securely mated 410035-001 Rev B (August 2003) Page 12 of 38 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model C60 MicroTurbine
