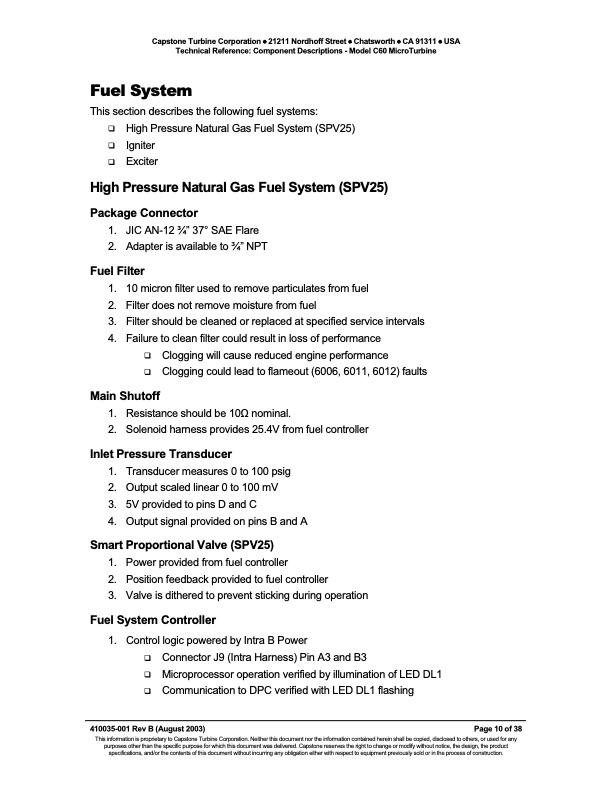

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Component Descriptions - Model C60 MicroTurbine Fuel System This section describes the following fuel systems: HighPressureNaturalGasFuelSystem(SPV25) Igniter Exciter High Pressure Natural Gas Fuel System (SPV25) Package Connector 1. JIC AN-12 3⁄4” 37° SAE Flare 2. Adapter is available to 3⁄4” NPT Fuel Filter 1. 10 micron filter used to remove particulates from fuel 2. Filter does not remove moisture from fuel 3. Filter should be cleaned or replaced at specified service intervals 4. Failure to clean filter could result in loss of performance Cloggingwillcausereducedengineperformance Cloggingcouldleadtoflameout(6006,6011,6012)faults Main Shutoff 1. Resistance should be 10Ω nominal. 2. Solenoid harness provides 25.4V from fuel controller Inlet Pressure Transducer 1. Transducer measures 0 to 100 psig 2. Output scaled linear 0 to 100 mV 3. 5V provided to pins D and C 4. Output signal provided on pins B and A Smart Proportional Valve (SPV25) 1. Power provided from fuel controller 2. Position feedback provided to fuel controller 3. Valve is dithered to prevent sticking during operation Fuel System Controller 1. Control logic powered by Intra B Power ConnectorJ9(IntraHarness)PinA3andB3 MicroprocessoroperationverifiedbyilluminationofLEDDL1 CommunicationtoDPCverifiedwithLEDDL1flashing 410035-001 Rev B (August 2003) Page 10 of 38 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the product specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.PDF Image | Technical Reference Component Descriptions Capstone Model C60 MicroTurbine
