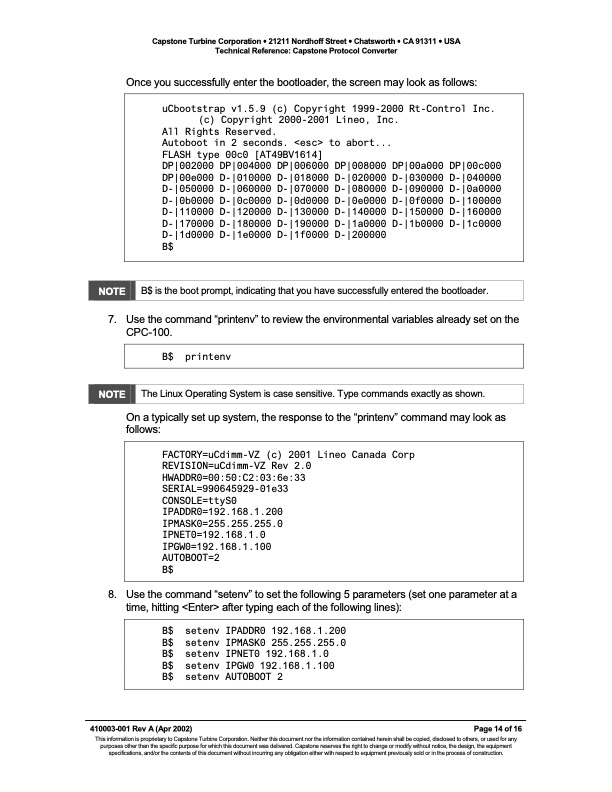

Text from PDF Page: 014

Capstone Turbine Corporation • 21211 Nordhoff Street • Chatsworth • CA 91311 • USA Technical Reference: Capstone Protocol Converter Once you successfully enter the bootloader, the screen may look as follows: uCbootstrap v1.5.9 (c) Copyright 1999-2000 Rt-Control Inc. (c) Copyright 2000-2001 Lineo, Inc. All Rights Reserved. Autoboot in 2 seconds. to abort... FLASH type 00c0 [AT49BV1614] DP|002000 DP|004000 DP|006000 DP|008000 DP|00e000 D-|010000 D-|018000 D-|020000 D-|050000 D-|060000 D-|070000 D-|080000 D-|0b0000 D-|0c0000 D-|0d0000 D-|0e0000 D-|110000 D-|120000 D-|130000 D-|140000 D-|170000 D-|180000 D-|190000 D-|1a0000 D-|1d0000 D-|1e0000 D-|1f0000 D-|200000 B$ B$ is the boot prompt, indicating that you have successfully entered the bootloader. Use the command ìprintenvî to review the environmental variables already set on the CPC-100. B$ printenv The Linux Operating System is case sensitive. Type commands exactly as shown. On a typically set up system, the response to the ìprintenvî command may look as follows: FACTORY=uCdimm-VZ (c) 2001 Lineo Canada Corp REVISION=uCdimm-VZ Rev 2.0 HWADDR0=00:50:C2:03:6e:33 SERIAL=990645929-01e33 CONSOLE=ttyS0 IPADDR0=192.168.1.200 IPMASK0=255.255.255.0 IPNET0=192.168.1.0 IPGW0=192.168.1.100 AUTOBOOT=2 B$ Use the command ìsetenvî to set the following 5 parameters (set one parameter at a time, hitting after typing each of the following lines): DP|00a000 DP|00c000 D-|030000 D-|040000 D-|090000 D-|0a0000 D-|0f0000 D-|100000 D-|150000 D-|160000 D-|1b0000 D-|1c0000 NOTE 7. NOTE 8. B$ setenv IPADDR0 192.168.1.200 B$ setenv IPMASK0 255.255.255.0 B$ setenv IPNET0 192.168.1.0 B$ setenv IPGW0 192.168.1.100 B$ setenv AUTOBOOT 2 410003-001 Rev A (Apr 2002) Page 14 of 16 This information is proprietary to Capstone Turbine Corporation. Neither this document nor the information contained herein shall be copied, disclosed to others, or used for any purposes other than the specific purpose for which this document was delivered. Capstone reserves the right to change or modify without notice, the design, the equipment specifications, and/or the contents of this document without incurring any obligation either with respect to equipment previously sold or in the process of construction.
